ANSI/ESD S20.20 Compliant Green Label Plus Certified
Install Capability
Body Voltage
The Perfect Blend of Style and Static Control

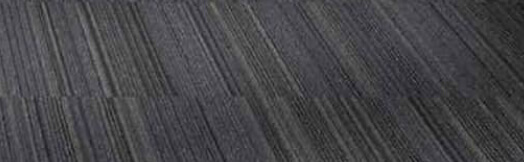

Facilities managers for end-user and public spaces have long appreciated the benefits of carpeted floors. Sound attenuation and ergonomics, combined with the ease and low cost of cleaning make carpet an obvious choice for end-user applications. StaticWorx ShadowFX static-dissipative carpet tile brings these benefits to electronics manufacturing, 24/7 operations, and any environment requiring reliable static control.
Based on biomimicry – the study and imitation of nature’s best ideas – ShadowFX carpet tiles mimic the organic design of nature. Tiles vary in patterns and colors within one style and colorway, hiding wear and making replacement tiles almost indistinguishable from older tiles in the same installation. Your floor lasts longer, you need less attic stock, and selective tile replacement is easy.
Why Choose ShadowFX ESD Carpet Tile?
Hides Wear & Tear
Nature-inspired random patterns mask pile crush and traffic wear, extending floor life and reducing replacement costs.
Superior Acoustics
Natural sound dampening creates quieter, more comfortable work environments for improved productivity.
Ergonomic Comfort
Anti-fatigue properties reduce foot and back strain for workers who stand throughout their shift.
Easy Maintenance
Individual tiles lift easily for cleaning underneath or selective replacement without visible seams.
No-Glue Installation
Install with TacTiles and GroundBridge for adhesive-free, 24/7 installation with zero downtime.
Environmentally Sustainable
Made in a carbon-neutral facility using 50% recycled materials with minimal installation waste.
What Clients are Saying
Just a quick note to let you know that the carpet tile installation started on Tuesday and everything is going silky smooth. Carpet looks great. Install is fast and easy. The system is working as it should – NICE!!
“[ShadowFX carpet] was installed during a two-week installation window at a military base in Florida. The specifications for this RSS required ESD carpet and the product from StaticWorx integrated perfectly!”
…the floor is awesome! It’s very durable and it’s very convenient that we can lift tiles up to remove debris from underneath, and even replace tiles if they are damaged. So from a functional perspective, this is the best floor for our manufacturing operation.
You would never know it was ESD, WHICH IS AMAZING! Your product rocks and I’m so glad we were able to find an attractive solution that didn’t leave us with some run-of-the-mill ugly disaster in the middle of our workspaces!
Your product is impervious to most/all conditions. It’s impressive. Happy to be working with StaticWorx.

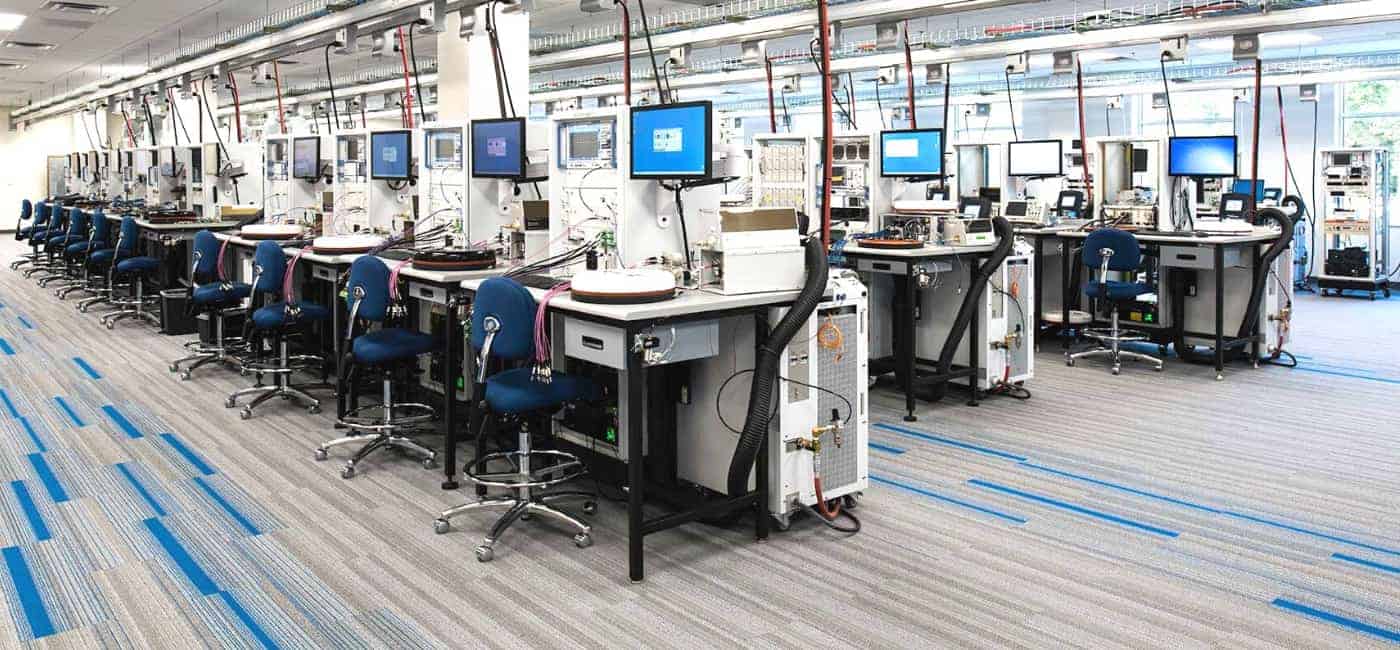

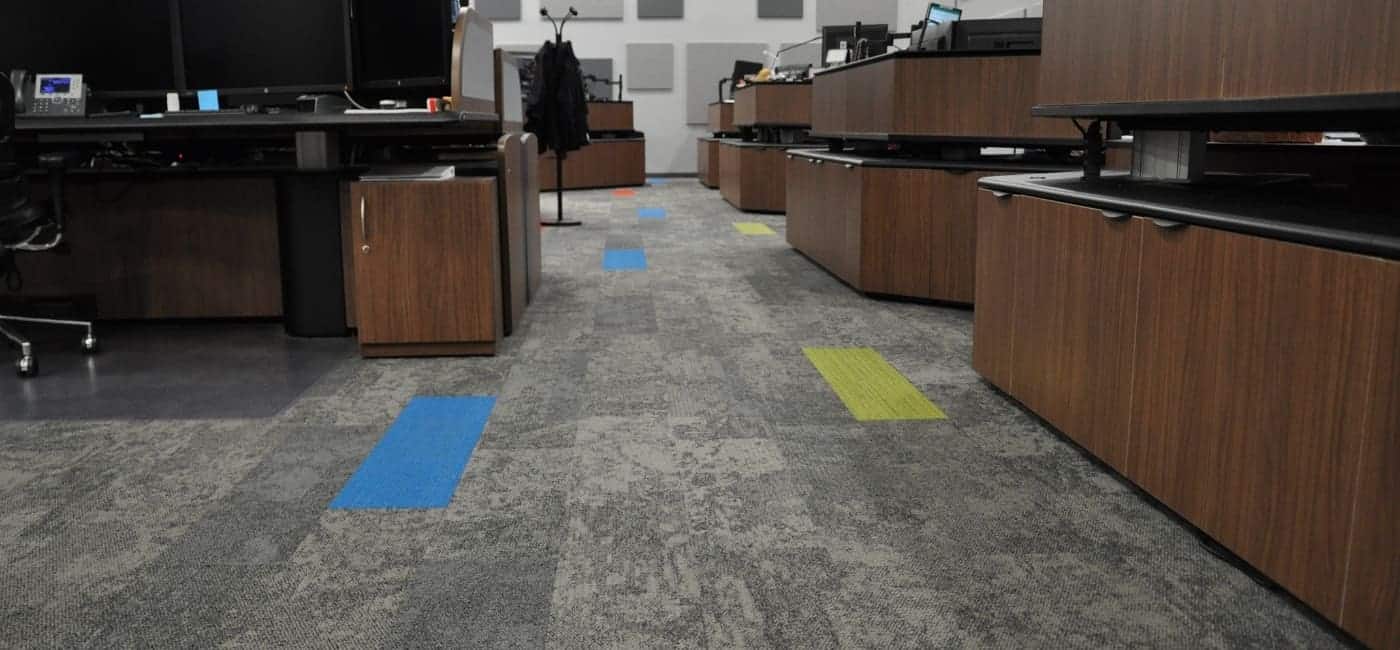

Ideal Applications
ShadowFX ESD carpet tile provides reliable static control for a wide range of environments
Explore Our ShadowFX Collections
Product Specifications
StaticWorx ESD Carpet Tile Technical
Information & Support
Standards Compliance
Meets or exceeds ANSI/ESD S20.20, NFPA 99, and IEC 61340-5-1 requirements for static-dissipative flooring.
Electrical Properties
System Resistance: 1.0 x 10⁶ – 1.0 x 10⁹ ohms. Body voltage generation: < 100V typical.
Physical Properties
- Construction: Tufted carpet tile with static-control fiber (Helix 44 denier yarn bundles)
- Tile Size: 0.5 m × 0.5 m (approx. 24″ × 24″) for standard tiles; 25 cm × 1 m for Vermont Planx planks
- Pile Height: Low-profile face for tailored aesthetic
Environmental Certifications
Green Label Plus, FloorScore, 50% recycled content, 100% carbon neutral lifecycle.
Manufactured in a facility with a strong adherence to sustainability, our ShadowFX static-dissipative carpet tile contains 55 percent recycled content. Helix 44-denier fiber and random directionality create a durable carpet tile product that hides wear and looks attractive, even in areas subject to heavy traffic, and lasts for years, reducing replacement waste.
Our ShadowFX carpet tile is Green Label Plus-certified, a designation granted to carpet identified by an independent testing program as having very low emission of volatile organic compounds (VOCs). This program is an enhancement of the Carpet and Rug Institutes’ Green Label Carpet Testing Program and establishes the highest standard for indoor air quality (IAQ) ever set by the carpet industry.
- May earn LEED points toward satisfying the U.S. Green Building Council (USGBC) LEED® Green Building Additional Anti Static Flooring Sustainability Fact Sheets Rating System™ including:
- LEED Materials and Resources: Recycled Content Credit 4.1 and 4.2
- LEED Materials and Resources: Local/Regional Materials (Contact us for more specific information)
- LEED Indoor Environmental Quality: Low Emitting Materials Credit 4.3.
- Other “green” qualities of this ESD carpet tile include:
- Low VOCs / off gassing of benign emissions:
- Awarded The Carpet and Rug Institute’s Green Label Plus certification for low chemical emissions with certifications under GLP0820
- Installed using environmentally friendly, low off gassing adhesives
- Recyclable Packaging
- Eco-friendly Manufacturing Methods
StaticWorx ESD Carpet TileFrequently Asked Questions
How does ShadowFX carpet hide wear better than traditional carpet?
ShadowFX uses biomimetic design principles where tiles vary in pattern and color within each style. This random, non-directional design masks pile crush and traffic wear patterns that would be obvious on solid or linear carpets. Replacement tiles blend seamlessly with older tiles.
What standards does ShadowFX carpet meet?
ShadowFX meets or exceeds ANSI/ESD S20.20 requirements for static-dissipative flooring, NFPA 99 for healthcare applications, and IEC 61340-5-1 international standards. All products are independently tested and certified by a third-party lab.
ShadowFX also meets Motorola R56 and ATIS 0600321 for telecom/network facilities, and FAA 019f for FAA flight towers and spaces that use FAA equipment.
How much installation waste should I expect?
Non-directional ShadowFX collections (Patterns, Cubic, Fields & Stone) average only 1.5% installation waste compared to 14% for directional carpet tiles. This means more of your investment stays on the floor, not in a dumpster.
What maintenance is required for ShadowFX carpet?
ShadowFX requires simple routine maintenance: regular vacuuming and periodic cleaning with approved ESD-safe carpet cleaner. The dissipative properties never wash out or wear away.
