Static generation with ESD footwear
Static generation with ordinary footwear

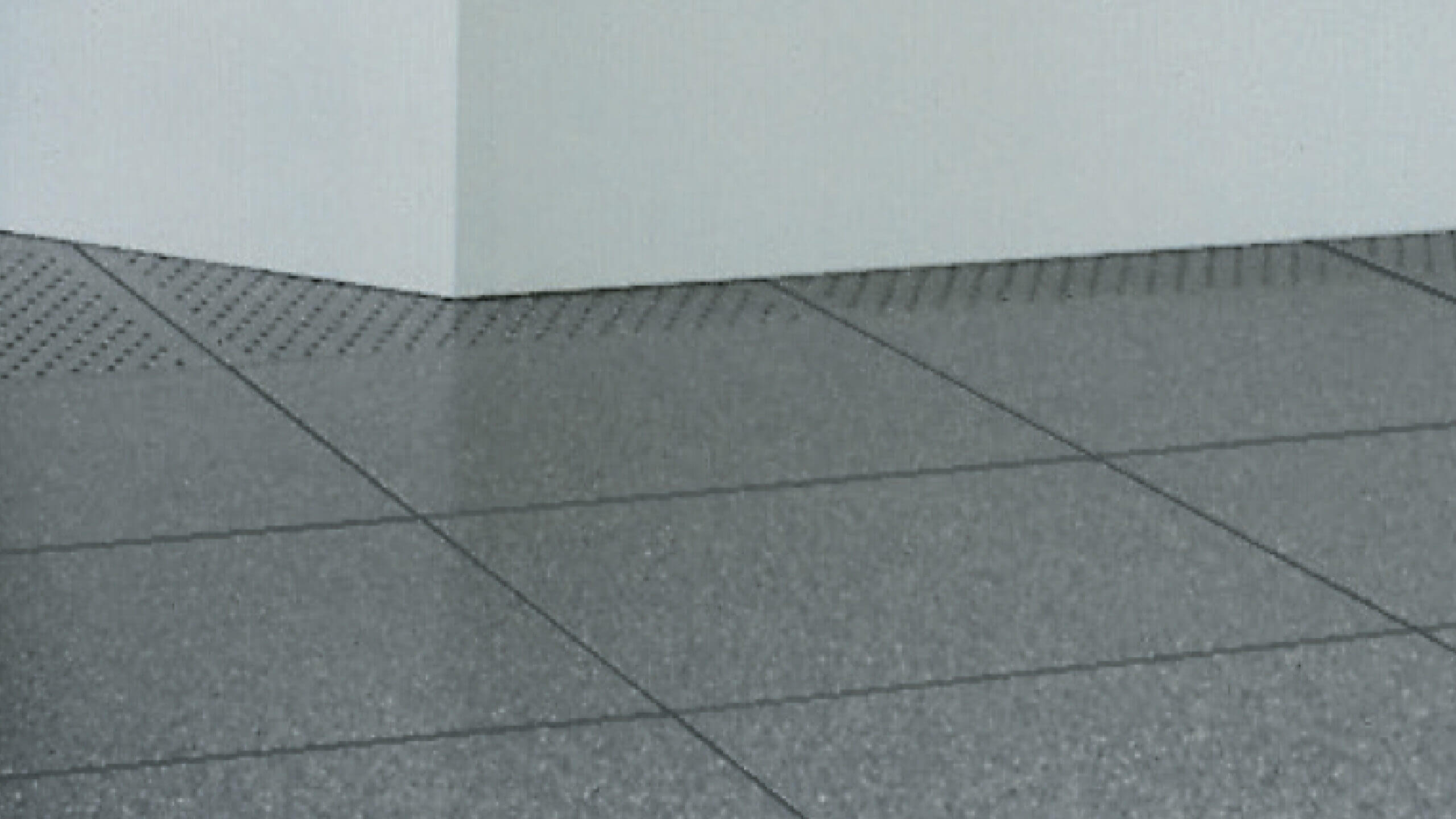

Why Choose StaticWorx ESD Rubber Flooring (Tiles)?
Inherently Antistatic
Rubber naturally generates extremely low static as people walk, reducing the risk of ESD events without relying on topical treatments or finishes.
Consistent Static Control
Engineered to meet ANSI/ESD S20.20 requirements, StaticWorx rubber flooring delivers reliable, predictable electrical performance across the entire floor system.
Footwear Independent Performance
Rubber is the only resilient flooring material that inhibits body voltage regardless of footwear. Meets ANSI S20.20 at low humidity, even with temporary heel straps.
Durable & Long-Lasting
Tough, resilient rubber withstands heavy traffic, rolling loads, and daily wear while maintaining its static-control properties for the life of the floor.
Comfort & Ergonomics
Rubber’s natural resilience reduces fatigue for people who stand or walk for long periods, supporting comfort without sacrificing performance.
Clean & Sustainable
PVC-, phthalate-, and halogen-free materials contribute to healthier interiors, with select products offering high recycled content for sustainability goals.
What Clients are Saying
…the floor is awesome! It’s very durable and it’s very convenient that we can lift tiles up to remove debris from underneath, and even replace tiles if they are damaged. So from a functional perspective, this is the best floor for our manufacturing operation.
You would never know it was ESD, WHICH IS AMAZING! Your product rocks and I’m so glad we were able to find an attractive solution that didn’t leave us with some run-of-the-mill ugly disaster in the middle of our workspaces!
Your product is impervious to most/all conditions. It’s impressive. Happy to be working with StaticWorx.

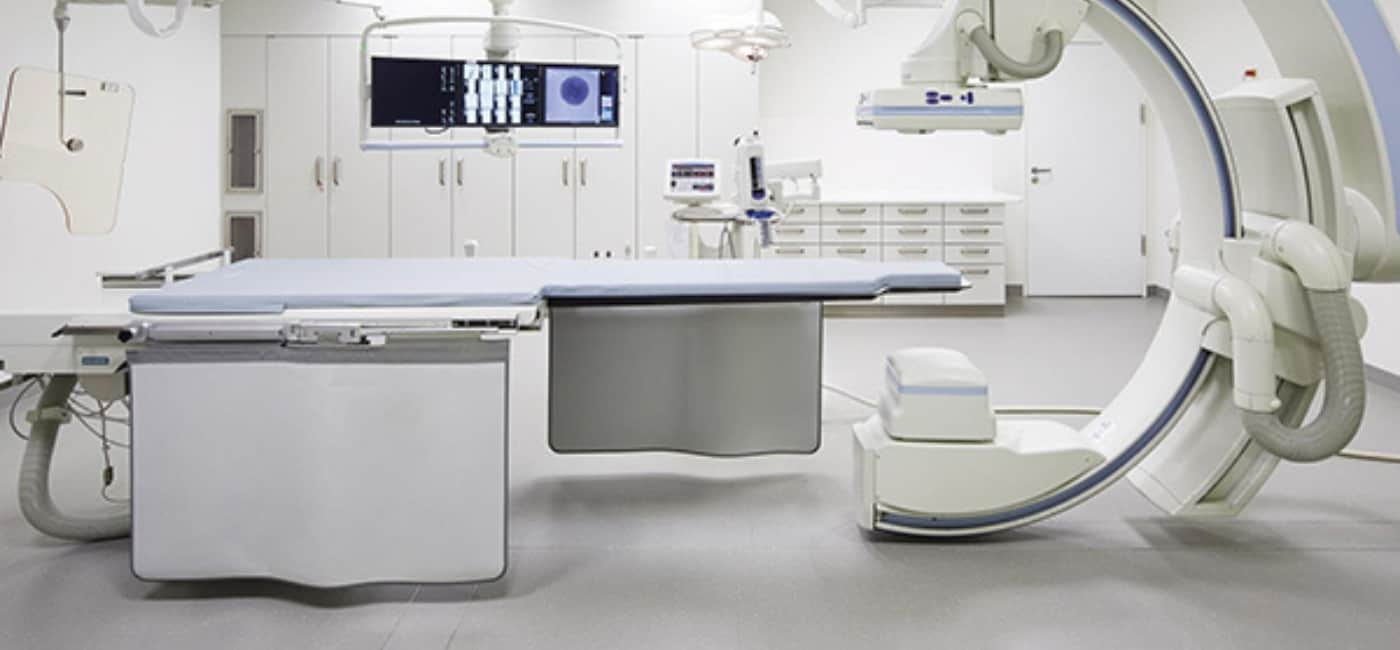

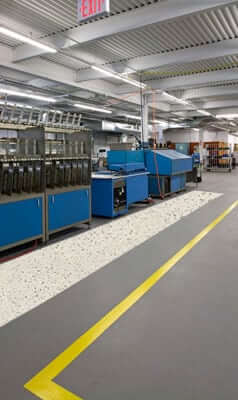

Ideal Applications
Where Rubber Flooring Excels
Explore Our Rubber Flooring
Application and Benefits Matrix
| EclipseEC | StatLock | |
|---|---|---|
| Over old floors | ✓ | ✓ |
| Moisture resistance | ✓ | |
| Ergonomic | ✓ | ✓ |
| ANSI ESD S20.20 | ✓ | ✓ |
| Electrically conductive | ✓ | |
| Static dissipative | ✓ | |
| Antistatic | ✓ | ✓ |
| Over 99% recycled | ✓ | |

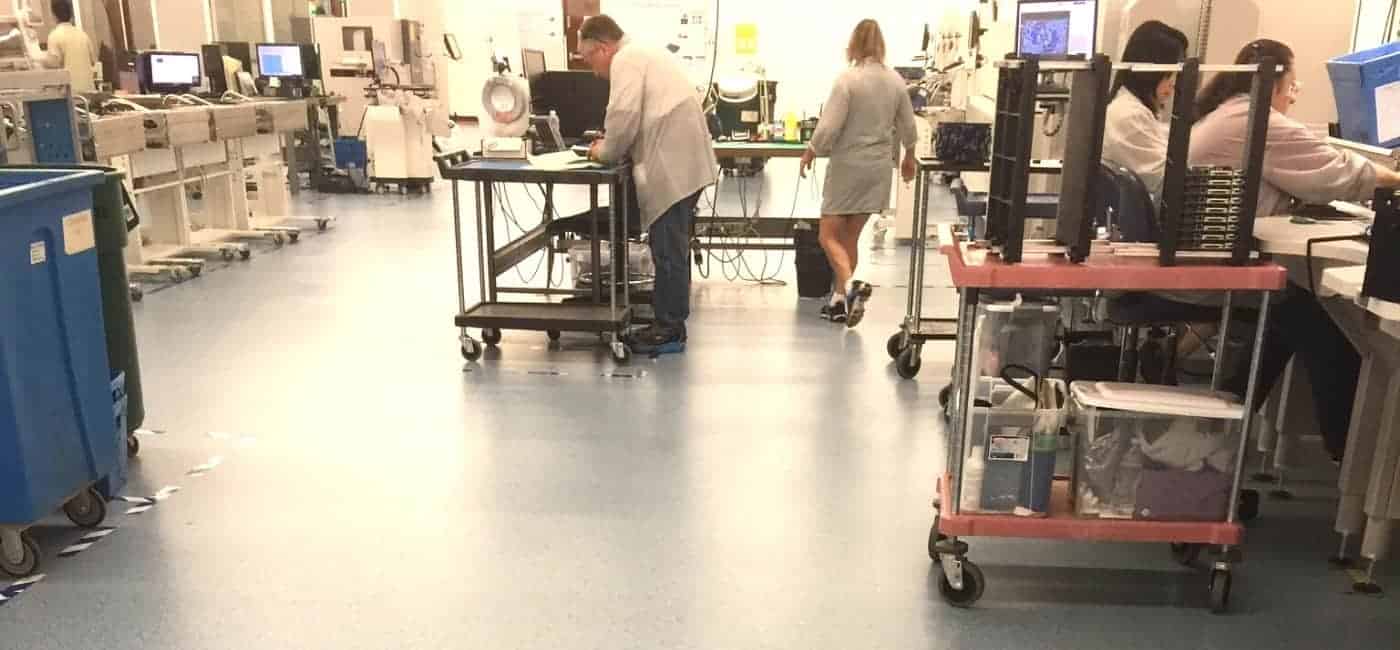

| Electronics manufacturing | ✓ | ✓ |
| Telecom | ✓ | |
| Explosives | ✓ | |
| Glue Free | ✓ | |
| Rolls | ✓ | ✓ |
| Interlocking | ✓ | ✓ |
| Tiles | ✓ | ✓ |
| Excellent value | ✓ |
Product Specifications
StaticWorx Rubber Flooring Technical
Information & Support
Material & Construction
- Inherently antistatic rubber
- Electrically Conductive (EC) and Static Dissipative (SD) options
- PVC-, phthalate plasticizer–, and halogen-free
- Select products available with recycled and post-consumer content
- ESD properties guaranteed for the life of the floor

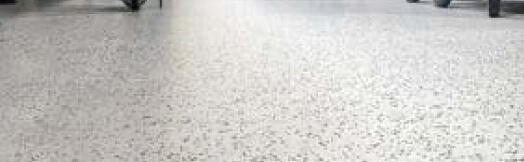

- Thickness options: 2 mm (rolls/runners), 8 mm (interlocking tiles)
- Available formats: tiles, rolls, interlocking tiles, runners
Electrical Performance

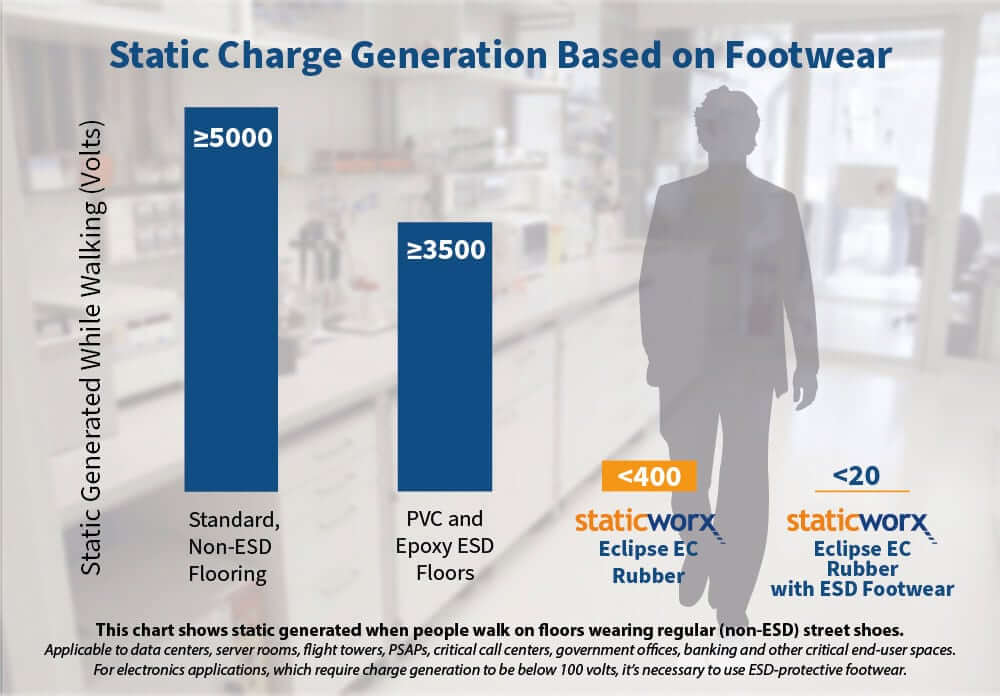

Walking Body Voltage
- < 20 V with ESD footwear
- < 400 V with ordinary footwear
System Resistance
- EC: < 1.0 × 10⁶ Ω
- SD: ≥ 1.0 × 10⁶ and < 1.0 × 10⁹ Ω

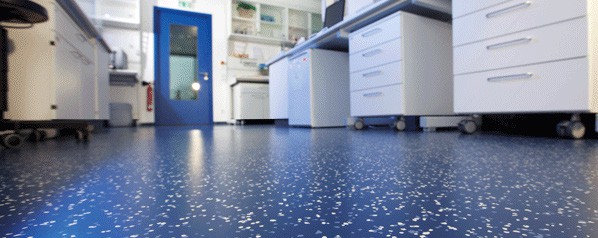

StaticWorx Eclipse electrically conductive (EC) rubber tiles are among the, if not the, most ecologically sound flooring products on the market. Eclipse rubber is produced in tightly-controlled thermo-powered facilities, using recycled water and reclaimed materials. Eclipse rubber has attained the LEED v4 rating.
May qualify for LEED credits including:
-
- LEED MR Credit 6: Rapidly Renewable Materials
- LEED MR Credits 4.1 and 4.2: Recycled Content
- LEED MR Credits 1.1 and 1.2: Building Reuse
- 10% post industrial waste
- Contains no PVCs or halogens
- Phthalate-free
- Flooring and Adhesive: Low VOCs / off gassing of benign emissions
- Stainblock™ surface eliminates the use of wasteful and environmentally unfriendly floor waxes, finishes, polishes and strippers.
- Contains 5% renewable natural rubber
- Recyclable Packaging
- Eco-friendly manufacturing methods
- Durable, long-lasting
- Low maintenance: damp mop with water only
- Free of solvents
Install with Confidence
Proper installation is critical to achieving long-term performance and reliable static control from StaticWorx rubber flooring systems. Our detailed installation instructions outline the required handling, subfloor preparation, adhesive selection, and installation procedures to help ensure compliance with performance standards and warranty requirements.
For complete, step-by-step guidance—including roll and tile installation methods—refer to our official installation instructions PDF.
StaticWorx Rubber FlooringFrequently Asked Questions
Is rubber flooring inherently antistatic?
Yes. Static-control rubber is inherently antistatic, meaning it generates very low static as people walk—without relying on topical coatings or applied finishes.
What is the difference between conductive and static-dissipative rubber?
Conductive rubber allows static charges to move quickly to ground, while static-dissipative rubber controls the discharge rate. Both meet ANSI/ESD requirements when properly installed.
Does rubber flooring require ESD footwear?
In data centers, PSAPs, FAA, and telecom applications, StaticWorx rubber flooring maintains body voltage under .5 kV, even with ordinary footwear. ANSI S20.20 requires body voltage under 100V, necessitating the use of ESD footwear. In these applications, conductive (EC) rubber keeps body voltage under 20V.
Will the ESD performance of Eclipse EC rubber wear off over time?
No, conductive rubber provides permanent static protection. StaticWorx Eclipse Plus rubber is a full-thickness, hybrid ESD rubber floor with no insulative materials, delivering fault-tolerant, continuous conductivity from the walking surface to ground.
Can rubber ESD flooring be installed over existing floors?
Yes. Many rubber products can be installed over existing flooring, depending on substrate conditions and installation method.
