The new workplace chair system…is a modern and contemporary chair concept that meets the current and future requirements of modern production and work systems in an exceptional way.”
Prof. Dr. Peter Kern
Fraunhofer IAO Stuttgart
Electrical Resistance
Limited Warranty
Average Static Generated
Shift Work Ready
Why ESD Seating Matters
When we sit in a regular chair – even on an ESD floor – we’re no longer grounded. Made with static-dissipative materials, StaticWorx ESD Bolt chairs ground you when you’re seated and prevent charges from building on your body.

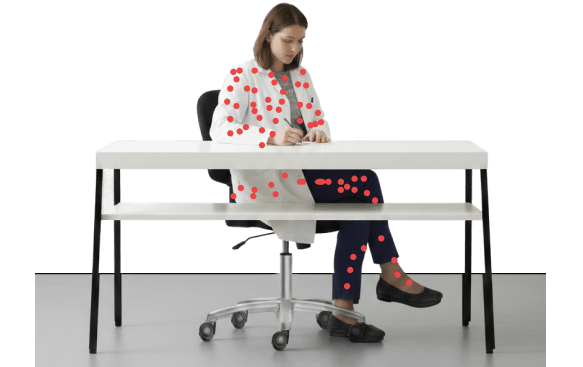

Without an ESD floor
Regular chairs can generate 4000+ volts from simple movements like standing up or shifting in your seat

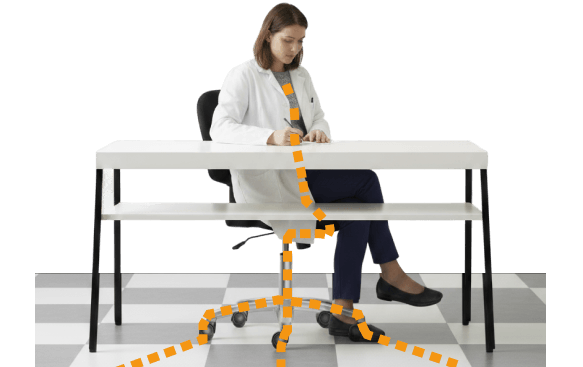

With Bolt ESD Seating
Grounded ESD chairs reduce static to below 0.1kV, protecting sensitive components from damage
Why Choose StaticWorx Bolt ESD Chairs?
Research Finding: ASHRAE studies show 1000s of volts generated from standing from regular chairs. Intel, Infineon & Warmbier (2019) proved grounded ESD chairs provide protection below 0.1kV.
- Comfortable ESD-safe upholstery
- Volume conductive plastics
- Steel components with conductive coating
- Conductive caster/glides
- Fixed and defined electrical resistance
- Rgp = 10E5 – 10E7 ohms
Features
The StaticWorx Advantage
Superior ESD Protection
Meets ANSI/ESD S20.20 requirements with < 1 x 10⁹ ohms resistance. Volume conductive plastics and conductive coating on all components ensure complete protection.
Ergonomic Excellence
Permanent contact backrest follows your movements. Generous seating with integrated pelvic support and rounded front edge prevents circulation issues.
Fully Adjustable
11+ inches of height adjustment, seat depth adjustment, tilt control, and optional 4D armrests adapt to any user or workstation.
Built to Last
10-year limited warranty backed by modular design. Individual components can be replaced without discarding the entire chair.
Sustainable Design
ISO-14001 compliant manufacturing. Almost complete material recovery possible. Replaceable upholstery reduces waste.
Easy Maintenance
Quick-change upholstery system allows individual cushions for each shift worker. Easy to clean for lab and cleanroom environments.

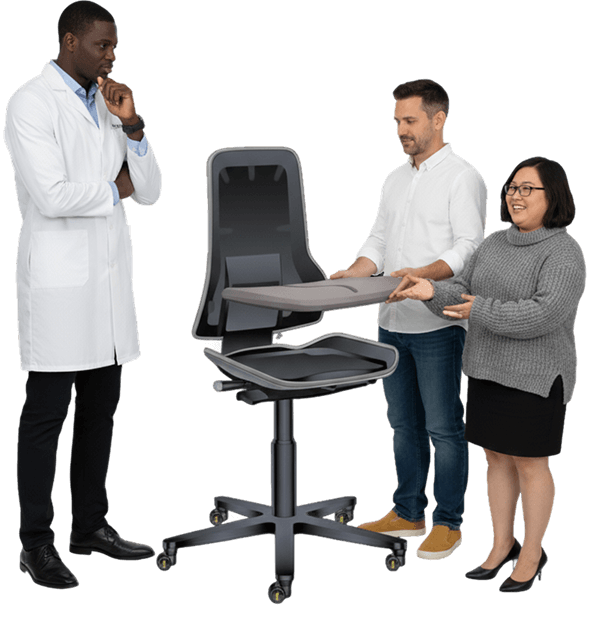

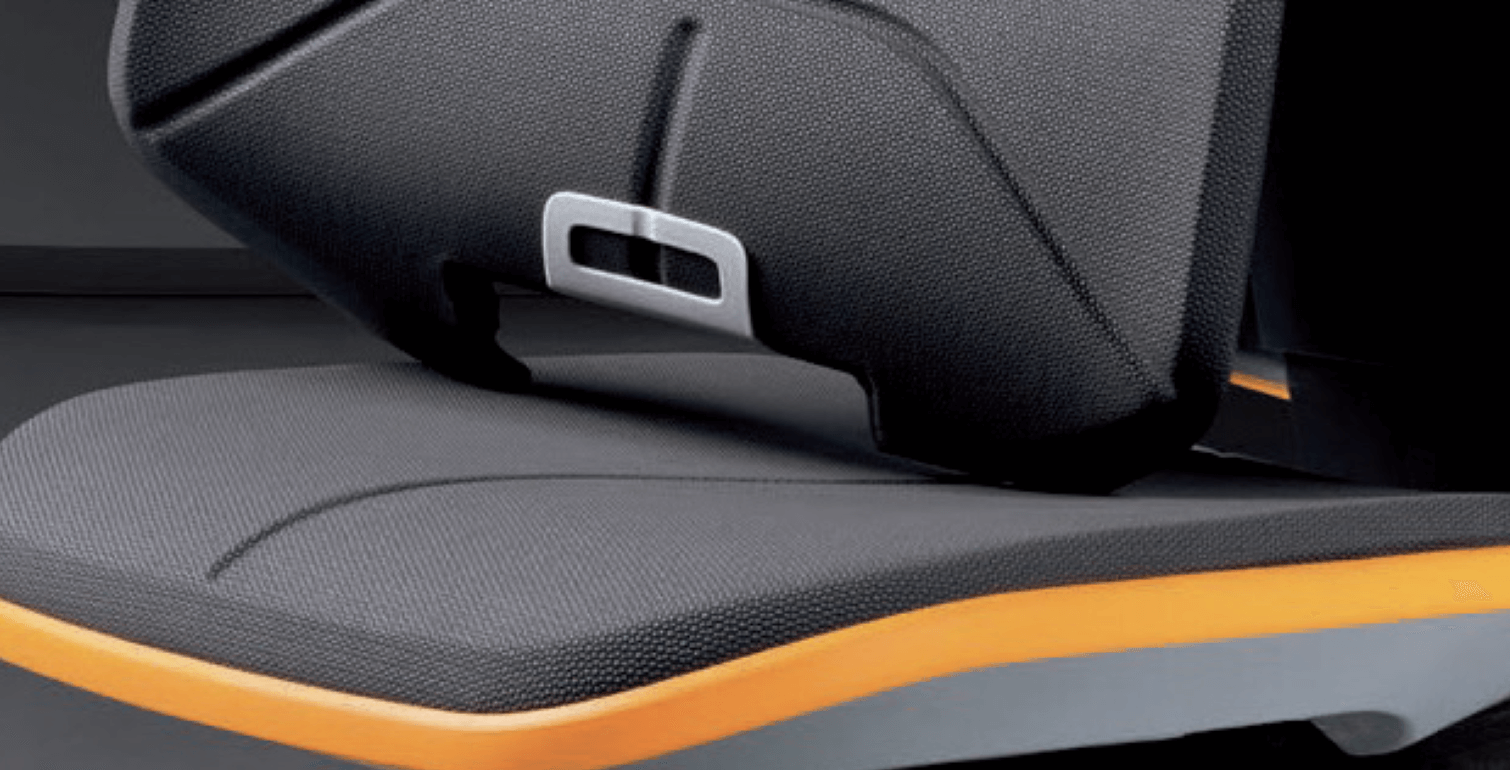

Modular Design
With a single investment in a chair, you only replace upholstery when necessary, if the Bolt chair is to be used in a different application. Removable Upholstery is available in ESD Fabric, ESD Synthetic Leather, Integral Foam & Ultratec.
Ergonomic and versitile
Backrest height adjustment ensures support in the lumbar region – no matter how tall the person. By adjusting the pressure of the backrest, both light and heavy people sit with the correct posture.
Optional Foot Ring or Mounting Aid
The mounting aid rotates with the seat height adjustment, so is always exactly in the right position. The very large step provides good grip; its height is adjustable, and it can be folded upwards by 90°.
Choose Your StaticWorx ESD Bolt Model

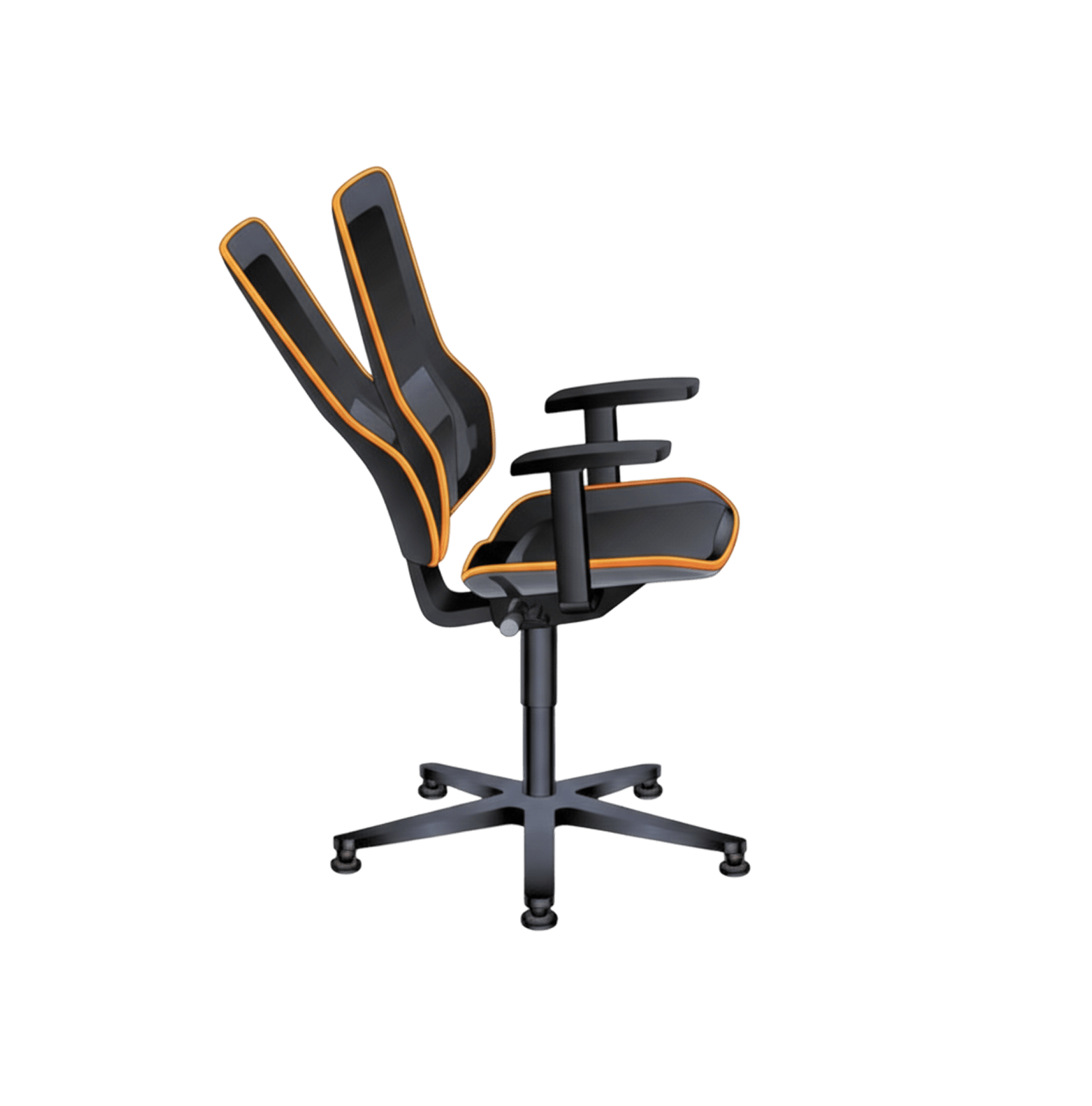

Bolt 1 – Fixed Position
Perfect for dedicated workstations where mobility isn’t required. Features glides for stable positioning.
- Seat height: 17.71" – 24.4"
- Aluminum base with glides
- Permanent contact backrest
- Ergonomic adjustment package
- Optional 4D armrests

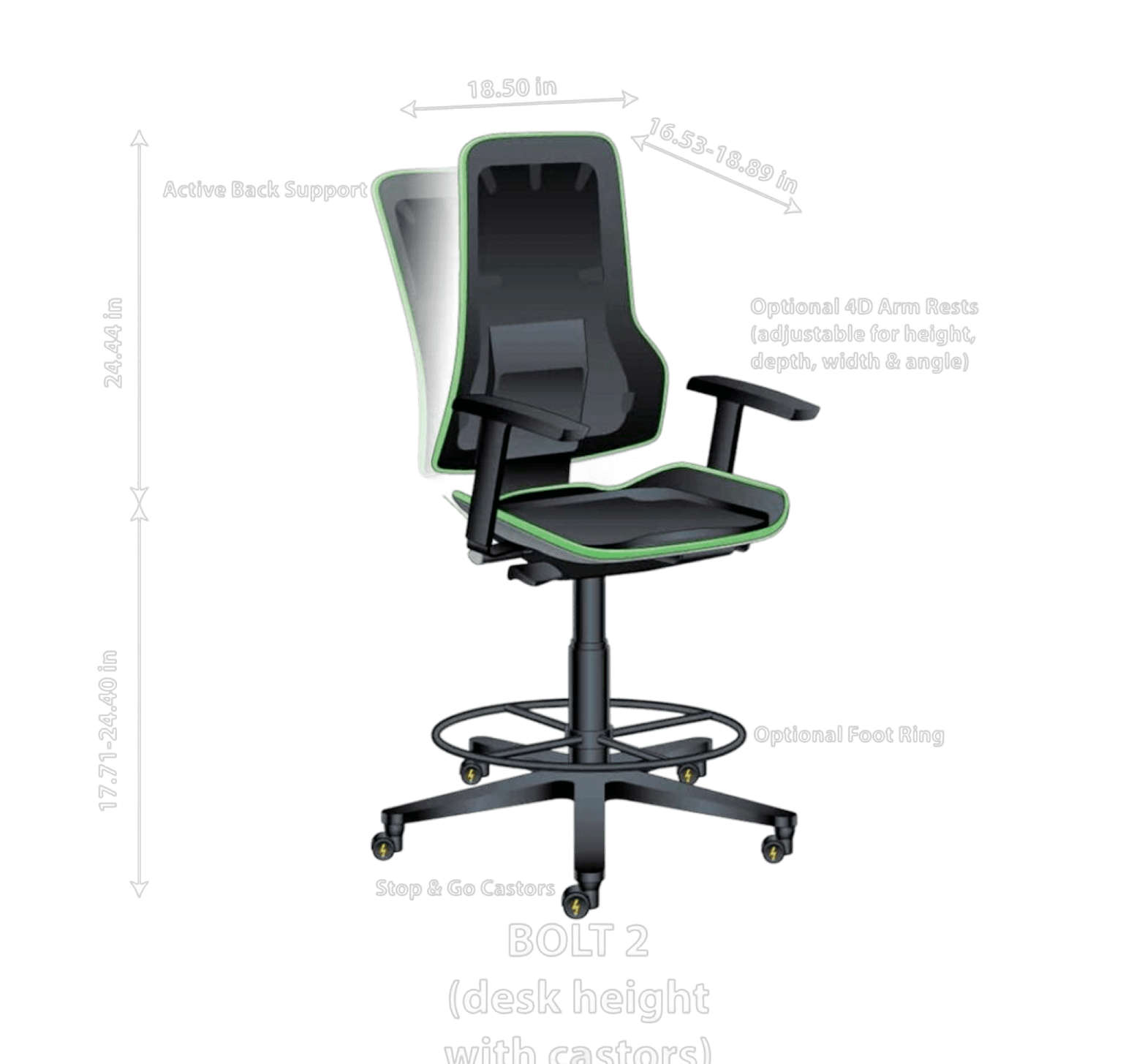

Bolt 2 – Mobile Workstation
Ideal for dynamic work environments. Stop & Go castors provide controlled movement when needed.
- Seat height: 17.71"-24.4"
- Stop & Go conductive castors
- Optional foot ring
- Active back support
- Load-dependent braked castors

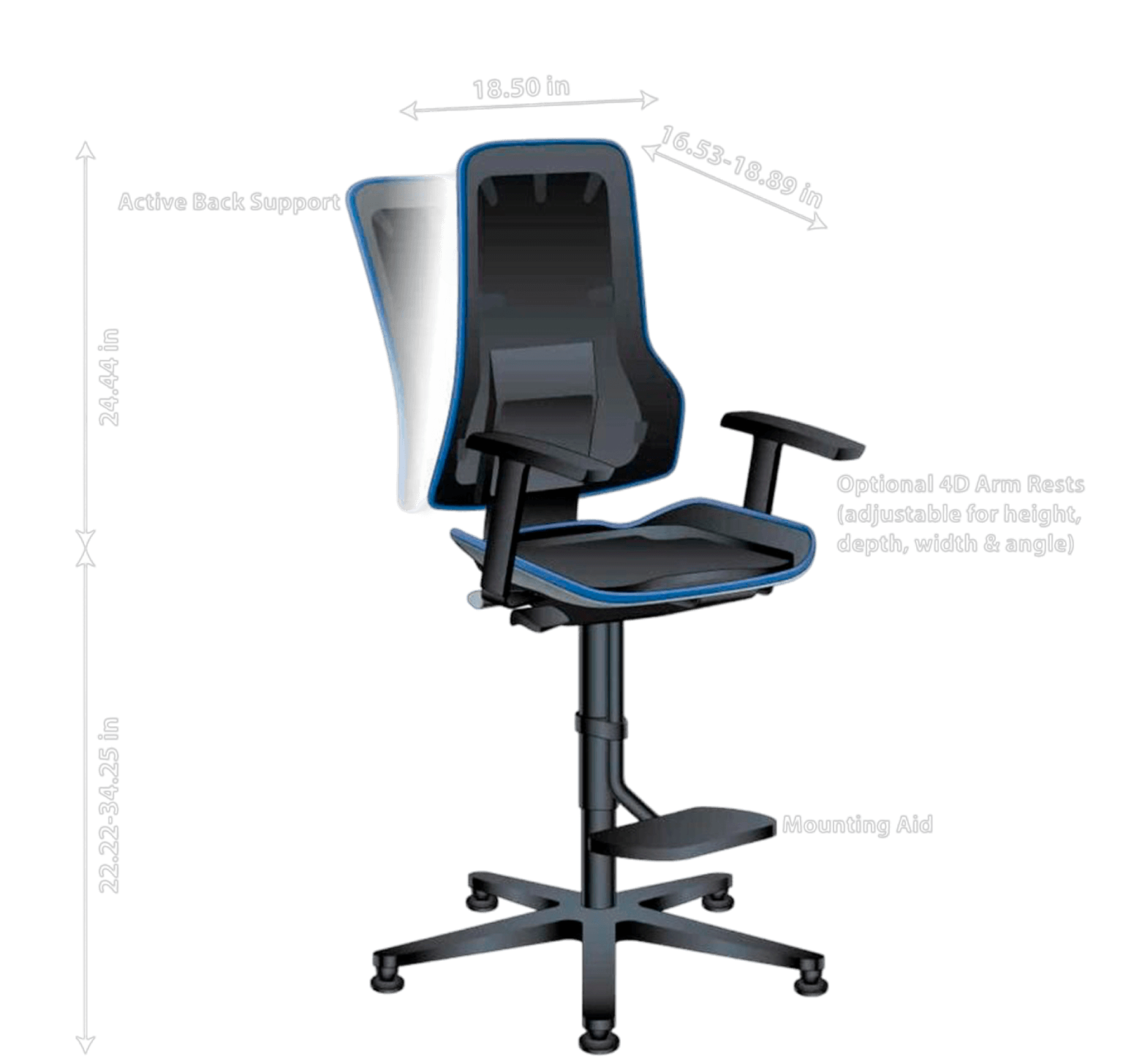

Bolt 3 – Laboratory Height
Designed for standing-height workbenches and laboratory environments. Includes mounting aid for easy access.
- Seat height: 22.22"-34.25"
- Height-adjustable mounting aid
- Large step with 900 fold capability
- Fixed glides for stability
- Same ergonomic features as Boltl & 2

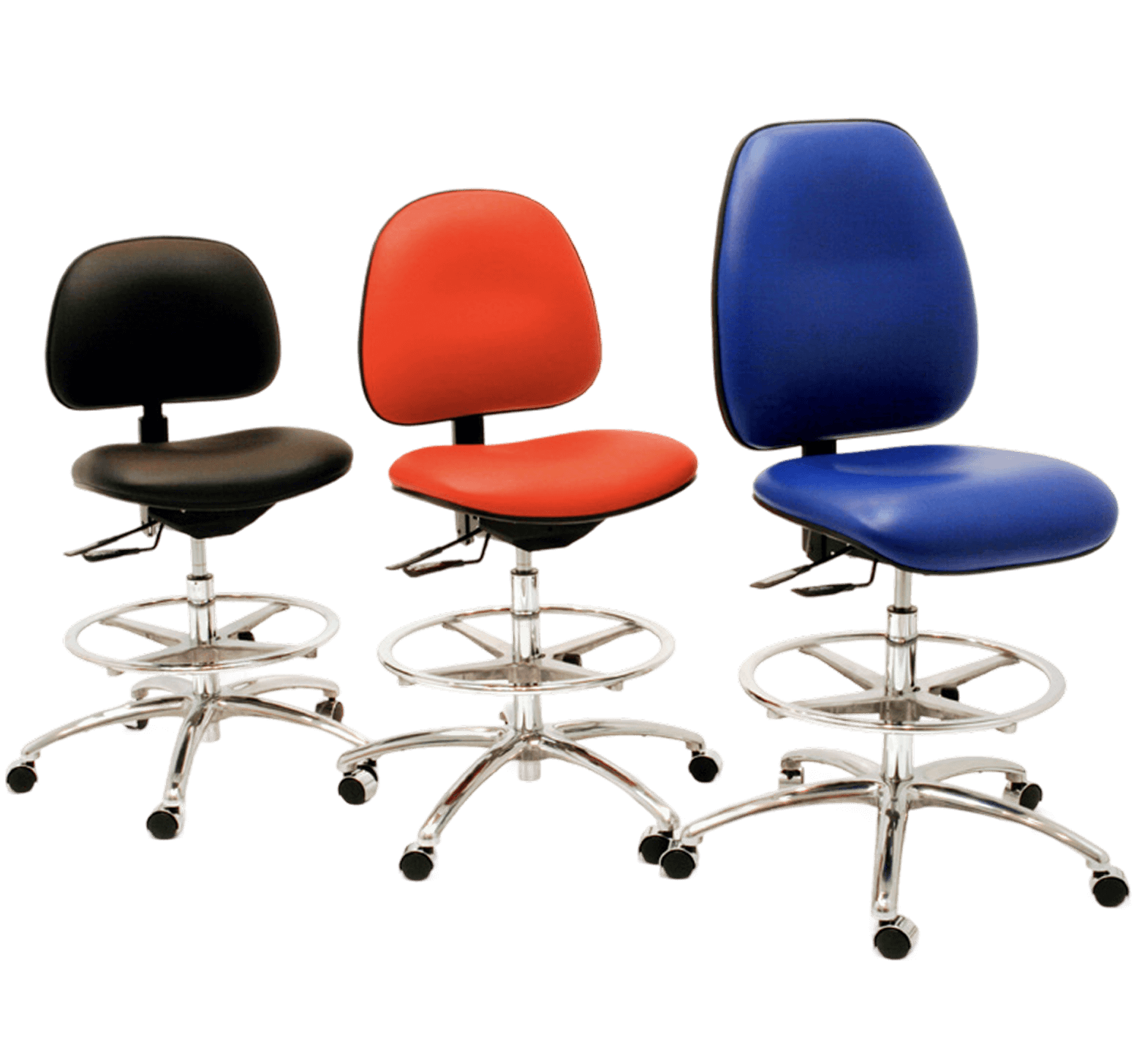

Bolt Basics – Customizable
Our versatile line with multiple seat heights and configurations. Popular in Fortune 1000 companies.
- Four height ranges: 17"-21", 19"-25", 22"-29", 25"-35"
- 300 lbs weight capacity
- Choice of back heights: 12.5" , 16", or 20"
- Multiple control options
- Variety of upholstery choices
Who Should Use Bolt Chairs?
Industries We Serve
StaticWorx ESD Bolt Chairs Technical
Information & Support
Electrical Performance
Dimensions (All Models)
Test Results:
Eclipse Rubber with ESD Bolt Lab Chair
(2-7V range)
(10-28V range)
less than walking
Ready to Eliminate Static Risk?
When your facility’s protection depends on getting it right the first time, choose
the company with an unmatched track record. We’re standing by to assist you.
