Load Capacity
Made in the USA
Features & Benefits
Why Choose AmeriWorx® Rox™ ESD Solid Vinyl Tile?
Stone-Inspired Aesthetics with Proven ESD Performance
Multi-pigmented, rock-inspired colorways deliver visual depth and a natural look—without compromising static control.
Permanent ESD Protection
Meets ANSI/ESD S20.20 requirements, with electrical performance and material integrity guaranteed for the life of the floor.
Precision-Milled for Seamless Installation
Perfectly square, dimensionally stable tiles install tight and gap-free, eliminating shrinkage and uneven seams.
Built for Heavy Industrial Use
Solid vinyl construction resists scratches and wear while handling extreme rolling loads and daily manufacturing traffic.
Fast Installation with No Downtime
Installed using pressure-sensitive adhesive, allowing immediate foot and equipment traffic with no curing delays.
Low-Maintenance & Healthy Indoor Air
No waxes, polishes, or ESD finishes required; FloorScore® certified with zero measurable VOCs and CA 1350 compliance.
Available Styles

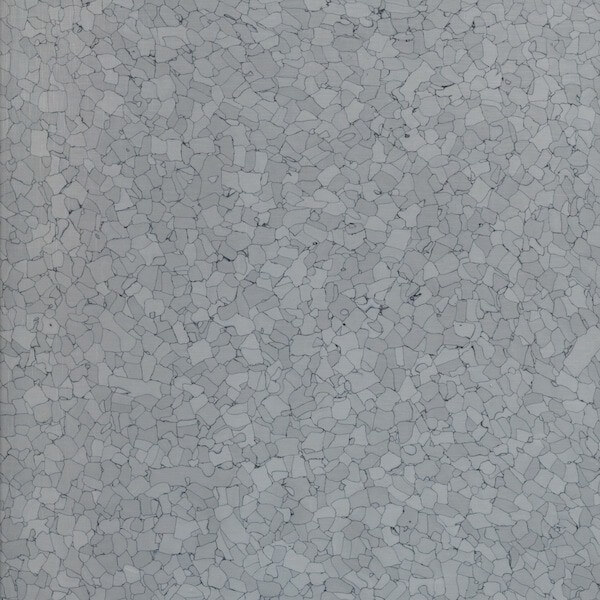

Gray Dolomite

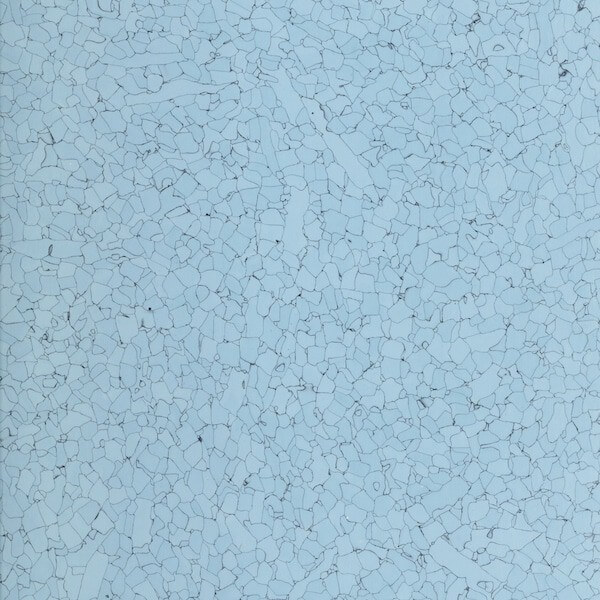

Blue Moraine

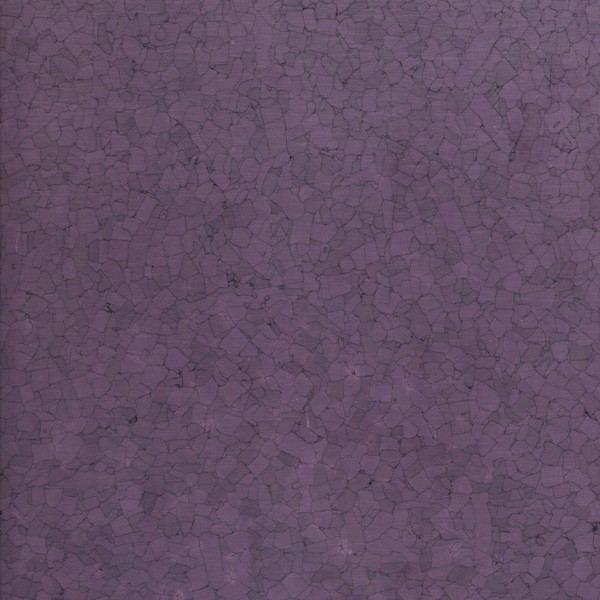

Amethyst

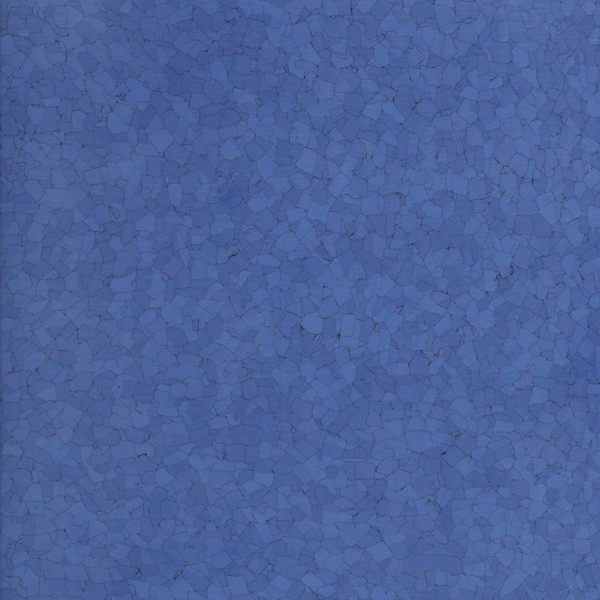

Acadia Blue Rocks

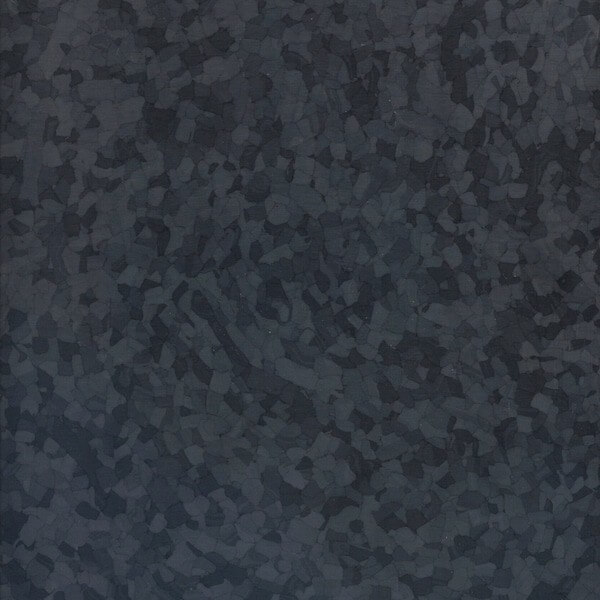

Black Rock Canyon

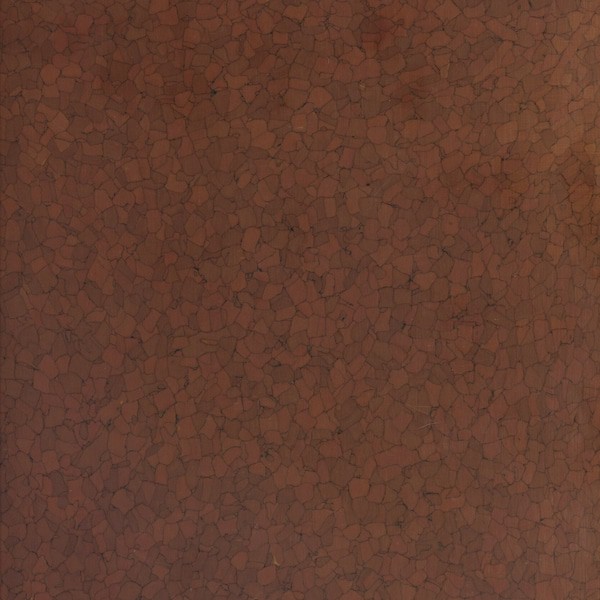

Sedona Sandstone

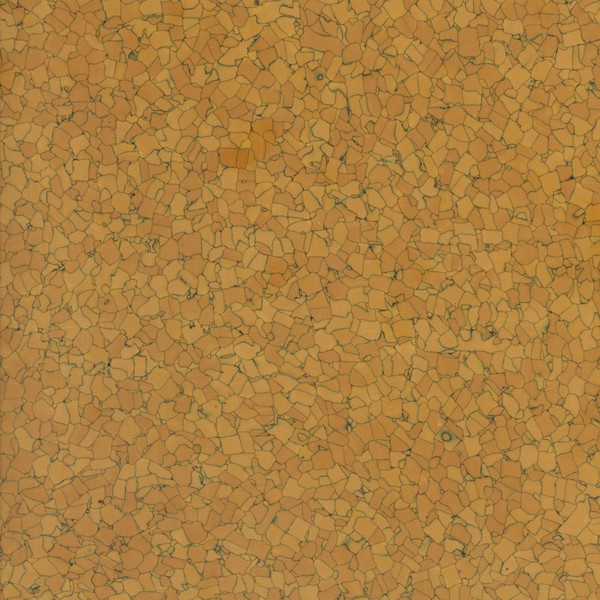

Lake Shore Boulder
What Clients are Saying

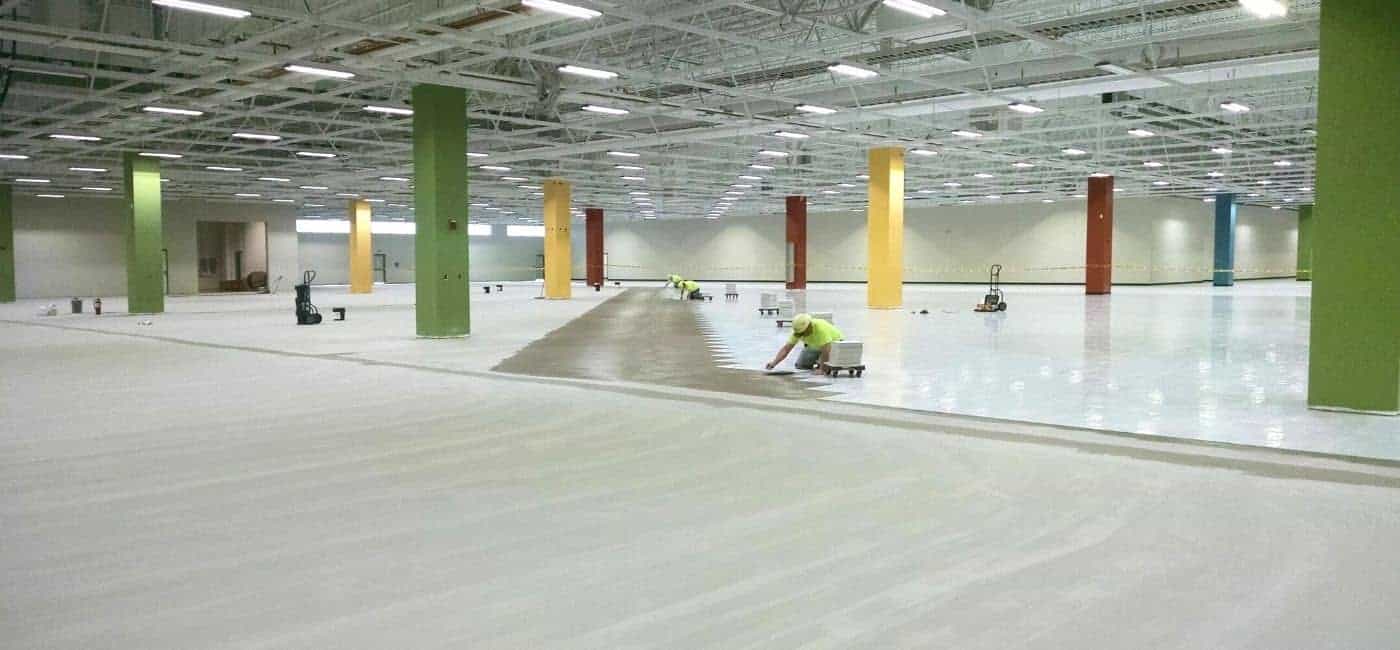

We chose AmeriWorx SVT for our facility’s 32,000 sq. ft. production floor because we wanted the ultra-clean white look and great aesthetics realized with vinyl flooring as well as the excellent ESD protection offered with conductive tile.
The StaticWorx products were instrumental in our success on the project. The installation process using GroundTack adhesive helped us bid and install static-dissipative tile at a production rate well above our historical levels. Our installers were genuinely impressed with how square, true, and consistent the product was. We are happy, and more importantly, our customers are happy. StaticWorx AmeriWorx is a superior product and we look forward to working with StaticWorx in the future.
AmeriWorx SVT allowed us to greatly increase our productivity. With the tiles being perfectly square and having no variation in gloss or thickness, we essentially improved our productivity by as much as 20%. Considering that labor is as much as 30% of the total cost of a new floor, that can mean the difference between a contractor making money or losing money on a tight project.
AmeriWorx Rox Conductive Vinyl Tile
Technical Information & Support
Specifications
(24” x 24”, 18″x36″ and 36″ x 36″ available as custom sizes)
Industry Tests
Test Method: ASTM E-648
Test Method: ASTM F-925
Test Method: ASTM F-150
Dissipative: 1,000,000 – < 1,000,000,000 ohms
Test Method: AATCC-134
Test Method: ASTM E-84
Test Method: ANSI/UL 779
Test Method: ANSI/ESD.S7.1
Conductive: <1.0 x 10E6
Dissipative: ≥ 1.0 x 10E6 and < 1.0 x 10E9
Test Method: ANSI/ESD STM97.1
< 3.5 X 10E7
Test Method: ANSI/ESD STM97.2
<25 volts with conductive footwear
Test Method: NFPA 101
Test Method: ASTM E-662
Test Method: ASTM F-1700
Test Method: NFPA 99
Test Method: ASTM F-101C
Test Method: ASTM F-970
(1.125″ diameter foot)
0.005″ RI @ 2,500 psi
(0.5″ diameter foot)
Further Reading
AmeriWorx® Rox™ ESD Solid Vinyl TileFrequently Asked Questions
What is AmeriWorx Rox ESD Solid Vinyl Tile?
AmeriWorx Rox is a solid, precision-milled ESD vinyl tile that delivers permanent static control with stone-inspired, multi-pigmented colorways for enhanced visual depth.
How is Rox different from AmeriWorx Classics?
Rox offers the same construction, performance, and lifetime ESD protection as Classics, but features rock-inspired colors designed to mimic the natural variation of stone.
Does AmeriWorx Rox meet ESD standards?
Yes. AmeriWorx Rox meets all requirements of ANSI/ESD S20.20 and provides guaranteed electrical performance for the life of the floor.
Is the ESD protection permanent?
Yes. Static-control performance is built into the tile and does not rely on topical coatings, waxes, or finishes that can wear off over time.
How durable is AmeriWorx Rox?
Rox is engineered for heavy industrial use and resists scratches, rolling loads, and high traffic while maintaining appearance and performance.
Is there downtime after installation?
No. When installed with pressure-sensitive adhesive, the floor can be used immediately after installation with no curing or drying time.
Does AmeriWorx Rox require waxing or polishing?
No. The floor does not require wax, polish, or ESD finishes, reducing ongoing maintenance costs and labor.
Is AmeriWorx Rox safe for indoor air quality?
Yes. Rox is FloorScore® certified with zero measurable VOCs and meets California 1350 indoor air quality standards.
What sizes and grades are available?
Rox is available in both conductive and static-dissipative grades. Standard size is 12” × 12”, with custom sizes available including 24” × 24”, 18” × 36”, and 36” × 36”.
How is the floor grounded?
Each order includes copper grounding strips, installed at a rate of one strip per 1,000 square feet, ensuring consistent static dissipation across the installation.
Prefer a Clean, Uniform Color Palette?
AmeriWorx Classics ESD Vinyl Tile delivers the same permanent ESD protection, precision-milled construction, and lifetime performance warranty as Rox, with solid, uniform colorways ideal for cleanrooms, labs, and controlled manufacturing environments.
