Project Overview
StaticWorx GroundWorx Ultra Generation 3 epoxy replaced a delaminating interlocking ESD floor in a lab at an aerospace manufacturer. The old floor exhibited signs of a contaminating growth – possibly mold – on the undersides of the tiles.
The Challenge
The existing interlocking ESD floor was delaminating and showed signs of contaminating growth, possibly mold, on the undersides of the tiles. The facility needed a reliable replacement that could handle high moisture conditions.
The Solution
After removing the old tile, a new GroundWorx Ultra coating was installed with a urethane cement base layer, epoxy body coat and conductive urethane topcoat, creating a 75 mil thick system.
Project Results
Post-installation electrical measurements showed excellent performance: RTG through a person per STM 97.1 section 5.3 ranged 8.3E05 to 1.3E06. Walking Voltage per STM 97.2 ranged from 2 to 4 volts.

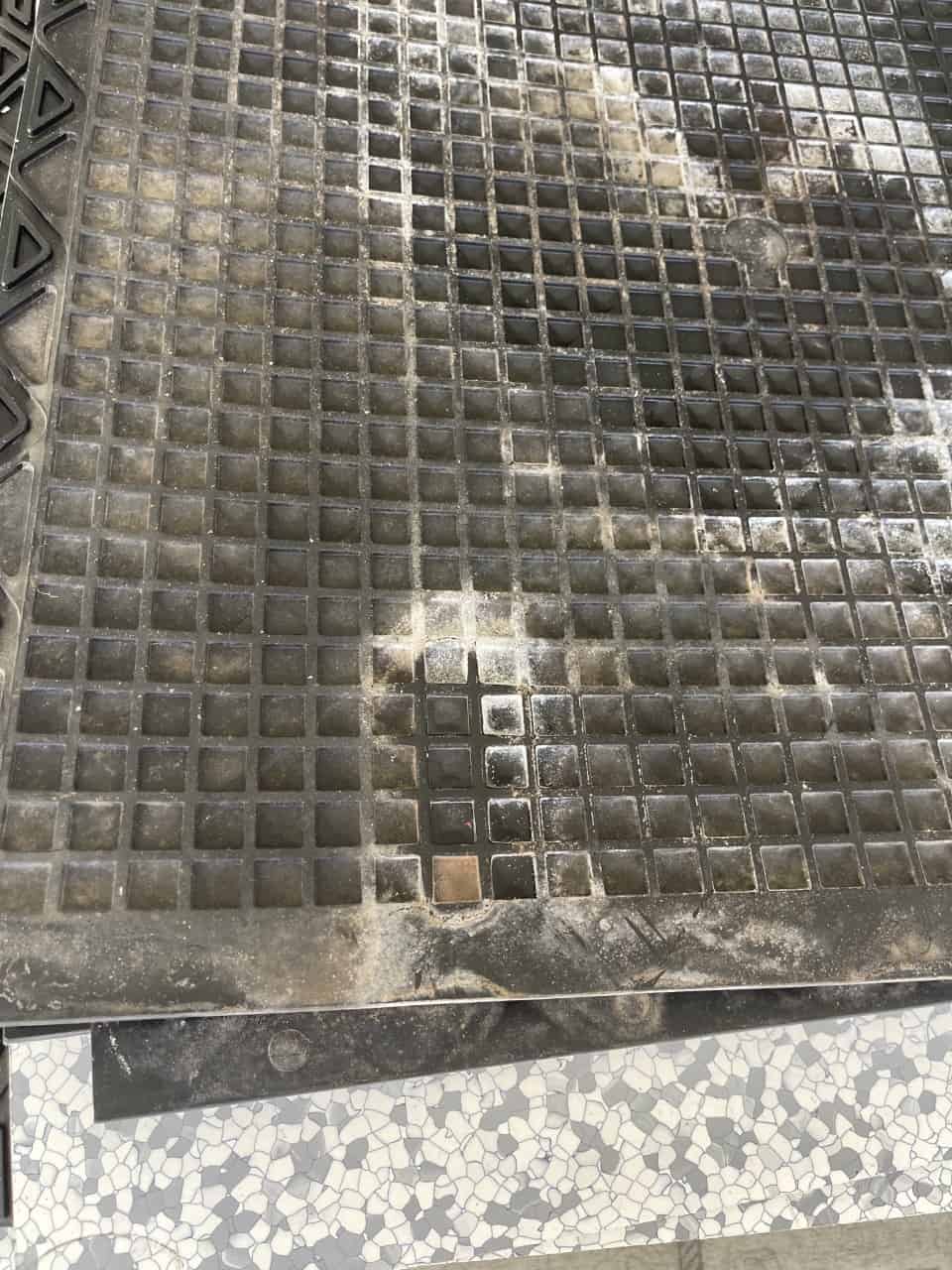

Moldy underside of old interlocking tile; removed from the floor before installing GroundWorx coating.

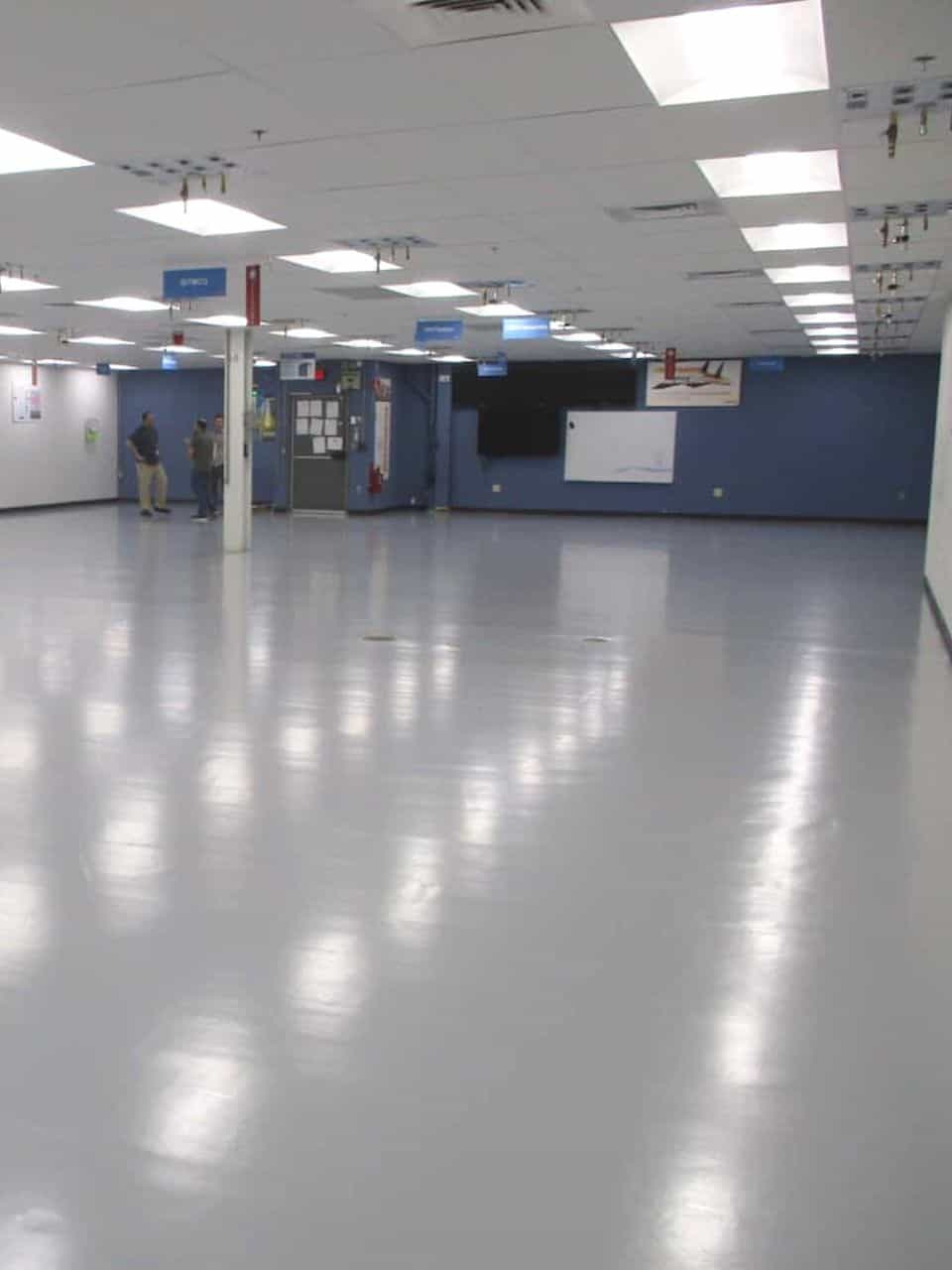

Completed GroundWorx Ultra installation
Results & Benefits
Project Specifications
Company
Aerospace Laboratory
Application
Electronics Manufacturing (Aerospace and defense)
Color
Light Gray – #7-0503
Total thickness
75 mils
Slab RH
Over 95% per ASTM 2170
Contractor
Chad Livingston, Northeast Flooring Solutions, Londonderry, NH
Total Area
5,100 sq. ft.
