Flex contracted StaticWorx to replace their worn tile with an ESD coating. For the floor finish, the client selected GroundWorx Ultra Generation 3 ESD epoxy. Phase 1 of this project (total: 300,000 square feet) consisted of removing the existing tile, preparing the concrete subfloor, and applying 70,000 sq.ft. of GroundWorx ESD epoxy. Progressive Building Systems, the flooring installers, finished Phase 1 in 3 weeks, with both the work and completion time exceeding expectations.

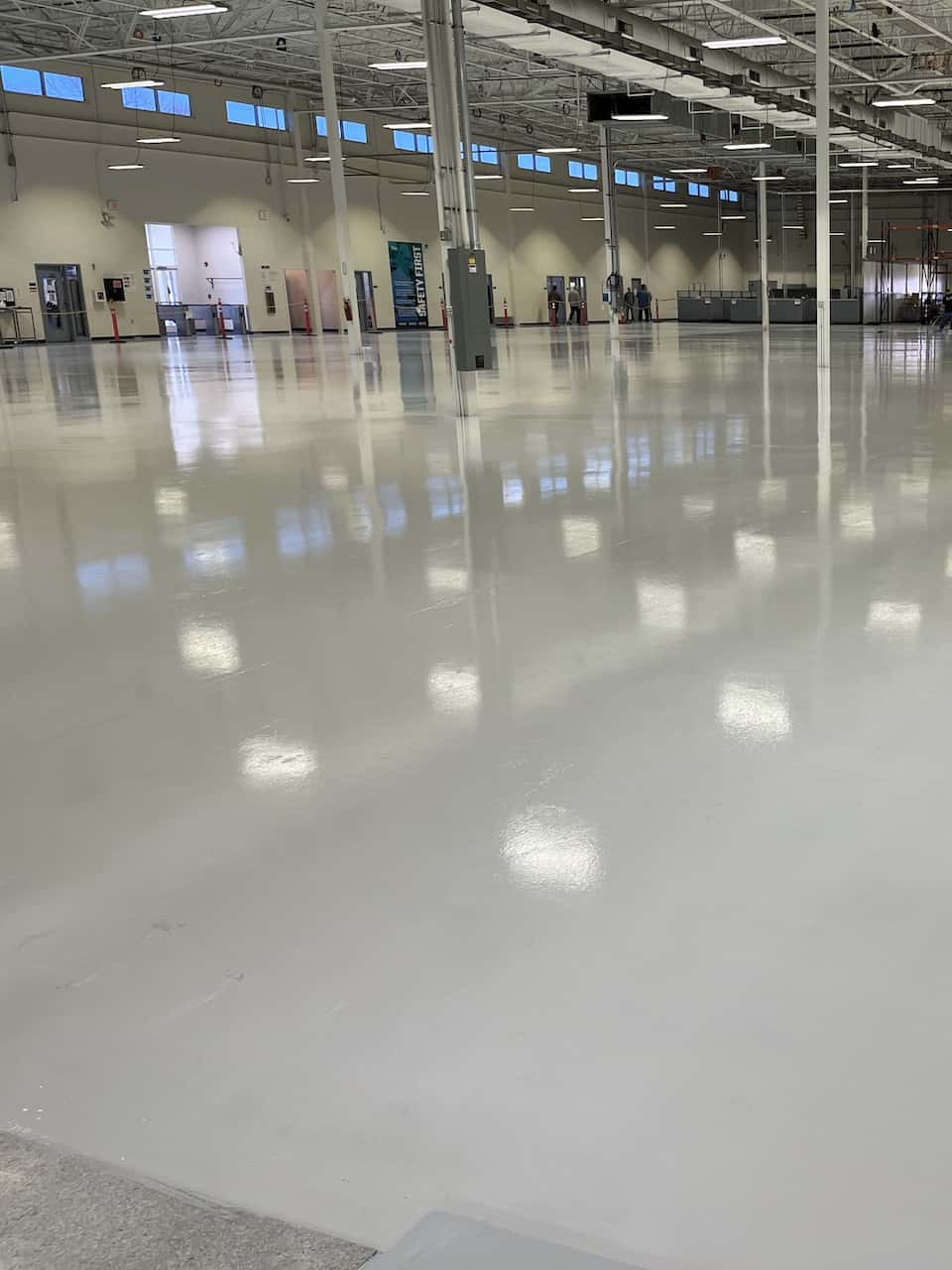

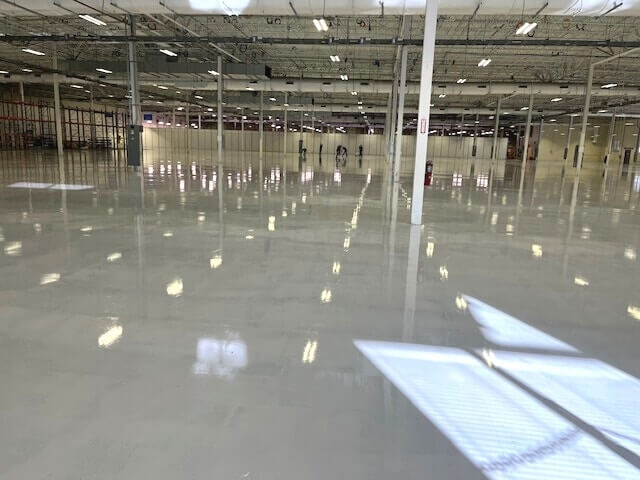

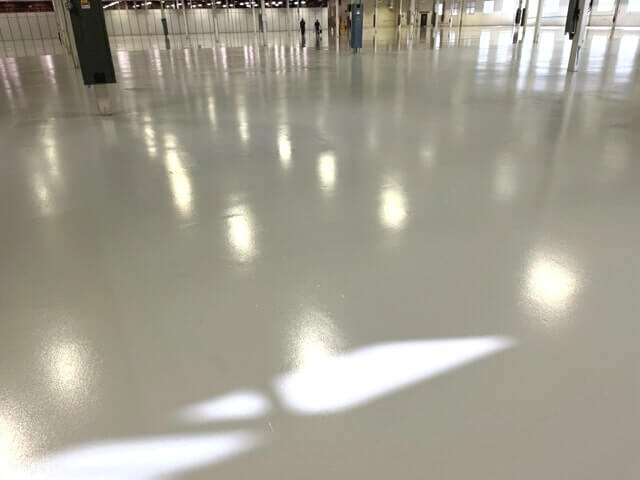

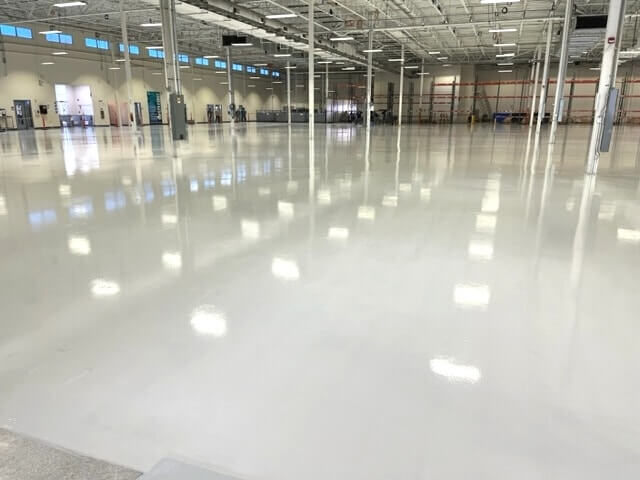

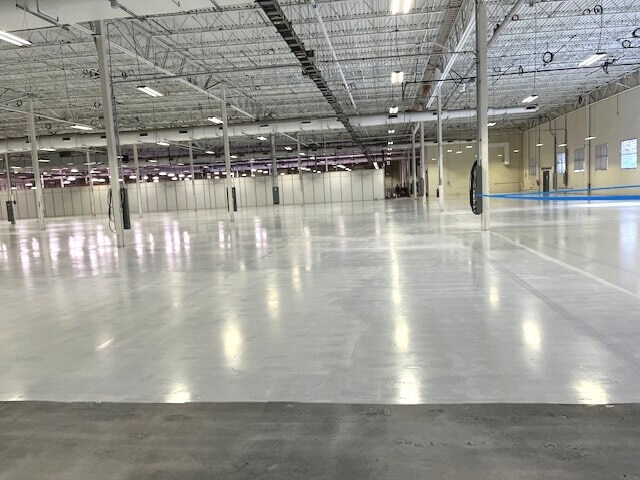

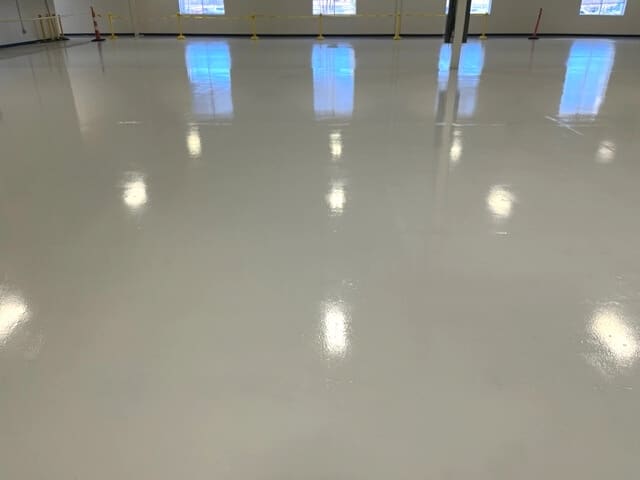

GroundWorx Ultra Generation 3 ESD epoxy coating installed in an EMS facility, phase 1 of a 300,000 square foot project

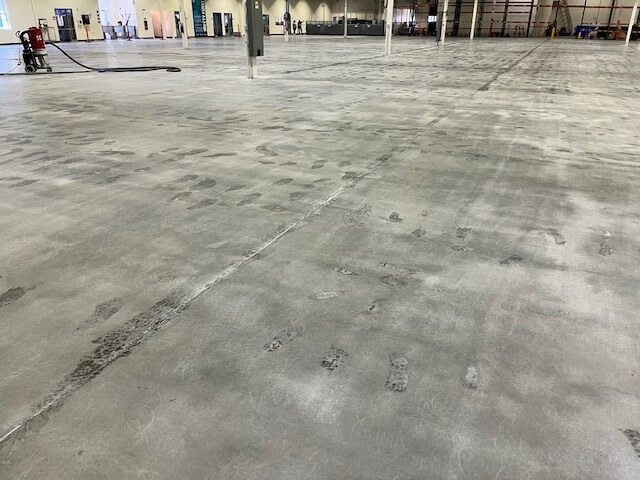

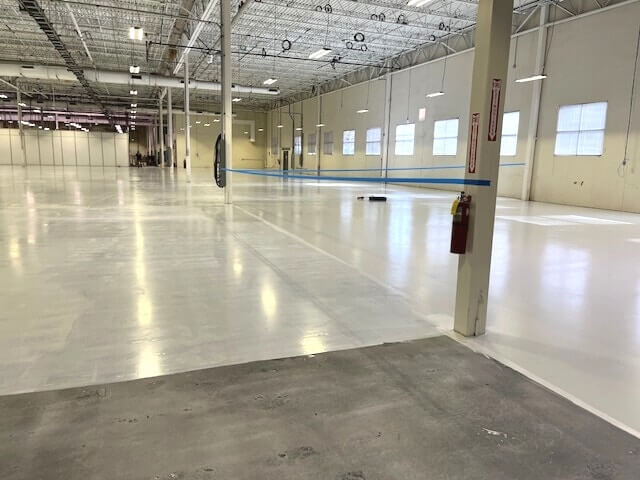

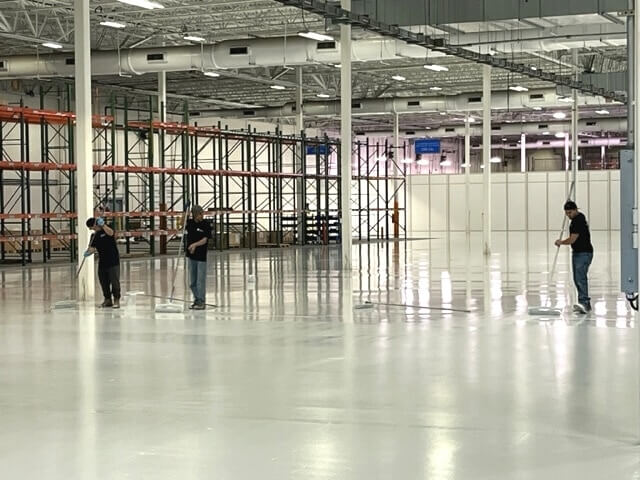

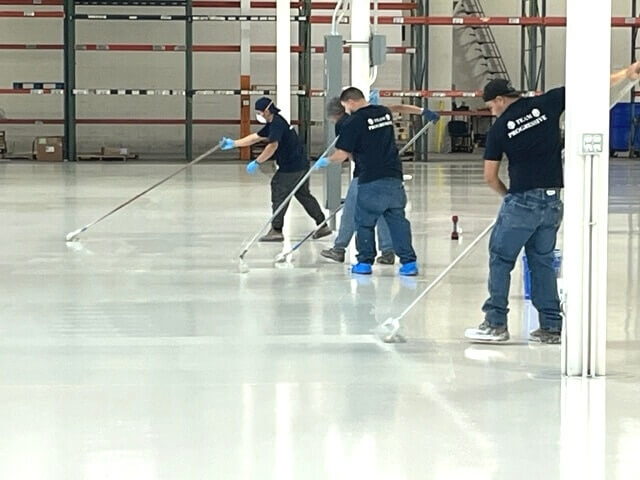

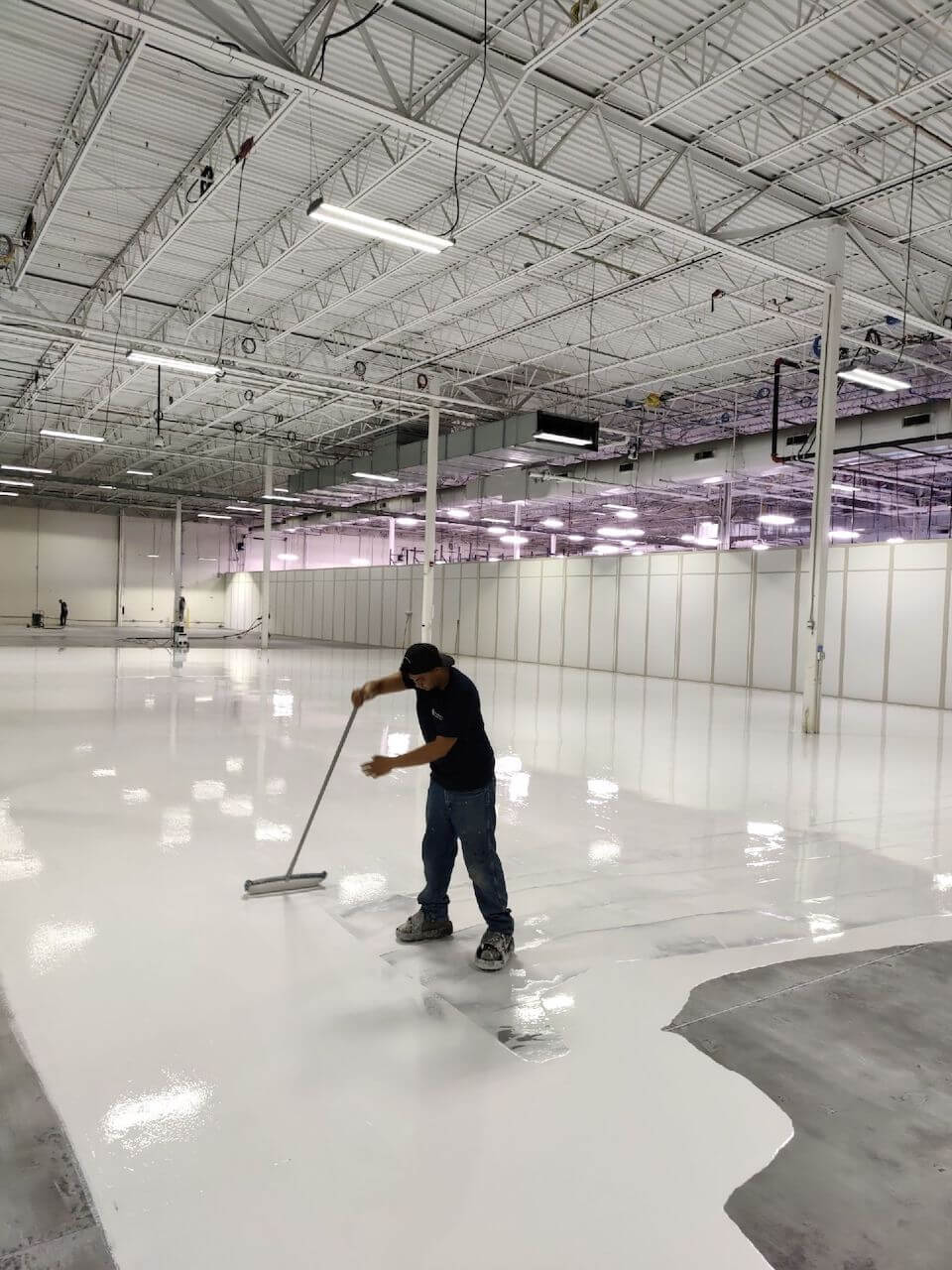

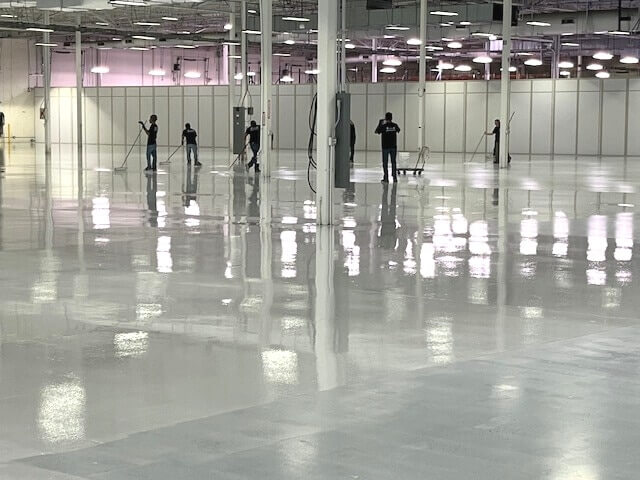

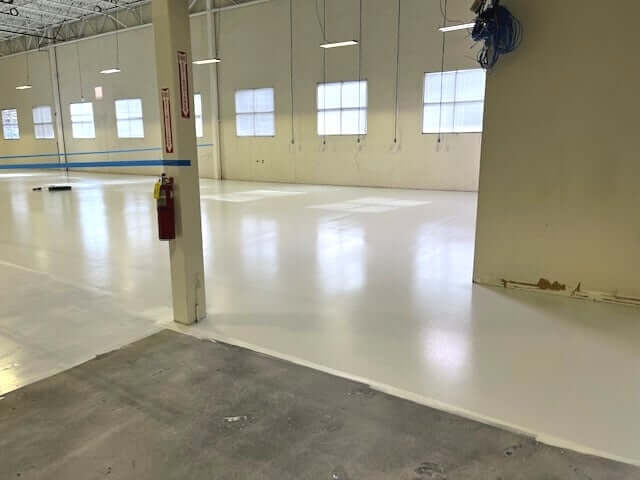

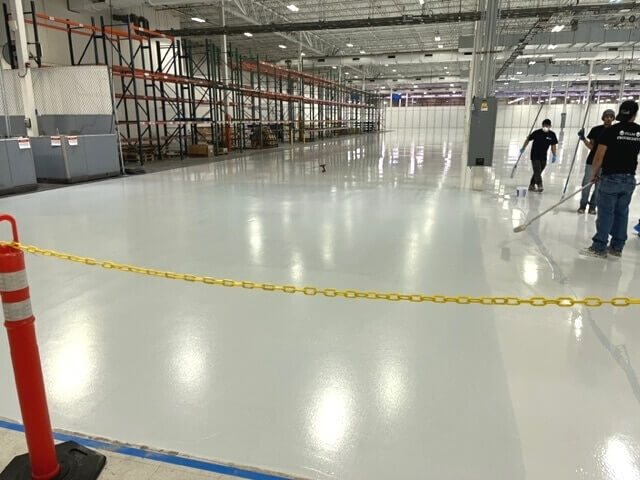

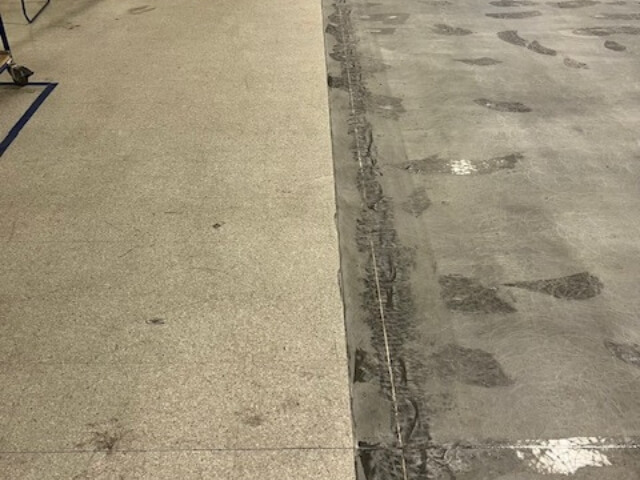

The project took three weeks from removal of existing tile and concrete preparation to completion of the coating application.

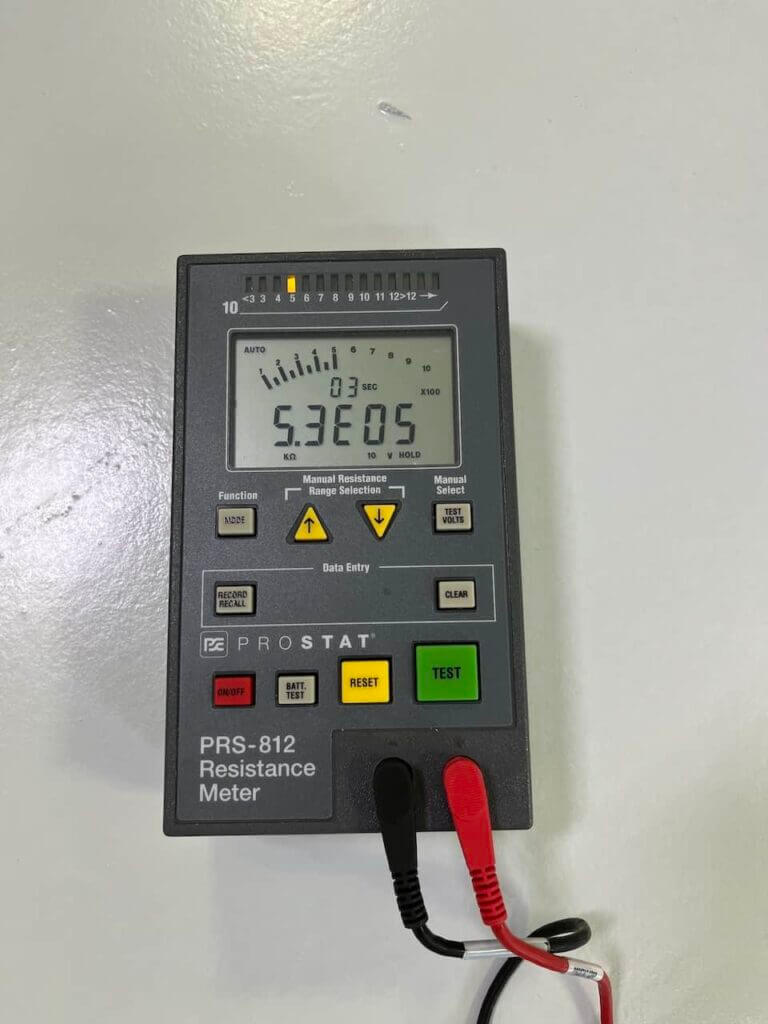

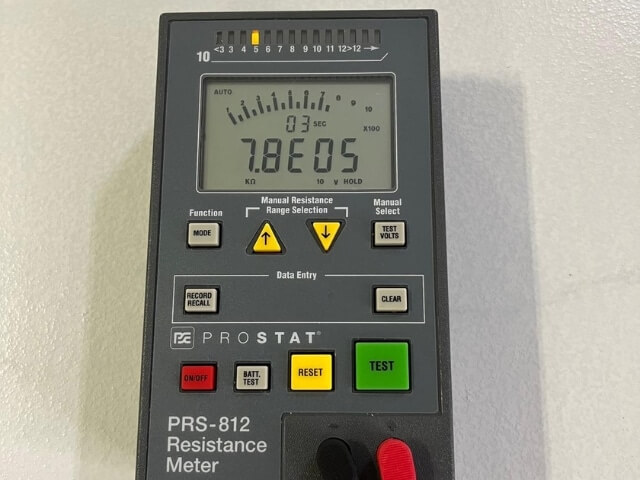

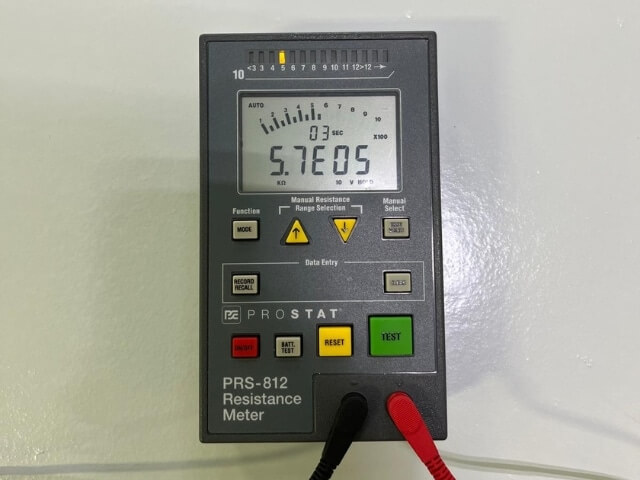

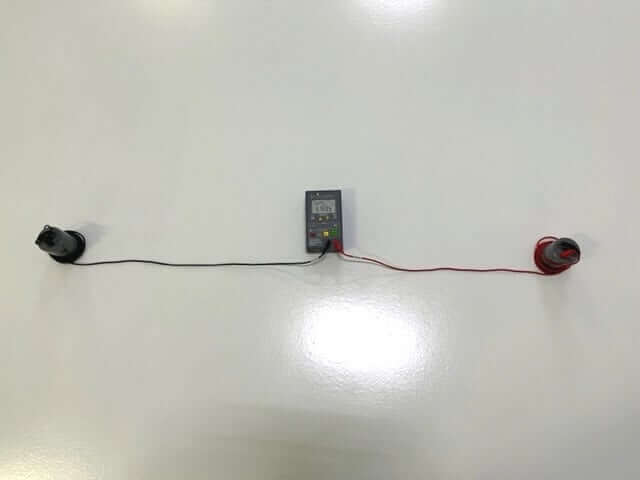

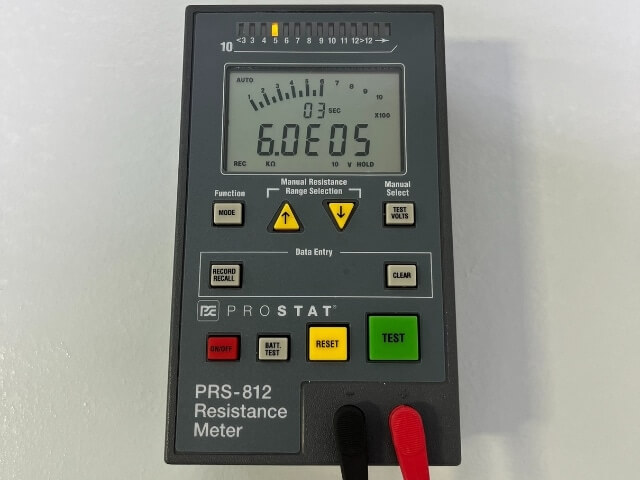

GroundWorx Ultra Generation 3 ESD epoxy coating reads under 1.0 x 10E6 ohms and generates extremely low body voltage
Body voltage readings at various places across the installation, measured with a volt meter.
| Floor | Grounded (Absolute Voltages) |
|---|---|
| 1 | 7 |
| 2 | 5 |
| 3 | 5 |
| 4 | 5 |
| 5 | 7 |
| 6 | 5 |
| 7 | 5 |
| 8 | 6 |
| 9 | 7 |
| Average | 6 |
| Maximum | 7 |
| Minimum | 5 |
| Std. Dev. | 1 |
Project Specifications
Company
Location
West Columbia, SC
Application
Electronics Manufacturing
Product
GroundWorx Ultra Generation 3 ESD Urethane Coating
Elevated moisture primer – 16 mils
Conductive urethane top coat with non-slip aggregate – 4 mils
Total system thickness: 20 mils
Installer
Progressive Building Systems (PAG, Inc.), Grand Rapids, Michigan
Total Area
70,000 sq. ft.
