ATIS 0600321

Glossary Term

ATIS 0600321 is a standard set by the Alliance for Telecommunications Industry Solutions: Protection for Network Operator-Type Equipment Positions

ATIS publishes standards for the information, entertainment and communications industries. Here’s the excerpt, from Section 4.2, pertaining to ESD flooring:

“Any carpeting or floor tiles should have a resistance to ground between 10E6 and 10E10 ohms when measured using the method of ESD-S7.1.”

Note: StaticWorx does not recommend flooring with electrical resistance above 1.0 x 10E8. Time and environmental changes can affect the performance of ESD flooring materials. If a material measuring ≥ 1.0 x 10E8 were to lose conductivity—the floor dries out over time or relative humidity drops—the floor could become too resistant to discharge static to ground. Floors measuring above 1.0 x 10E9 do not meet resistance parameters outlined in ANSI/ESD S20.20.

Learn more about standards and test methods

Walking Body Voltage

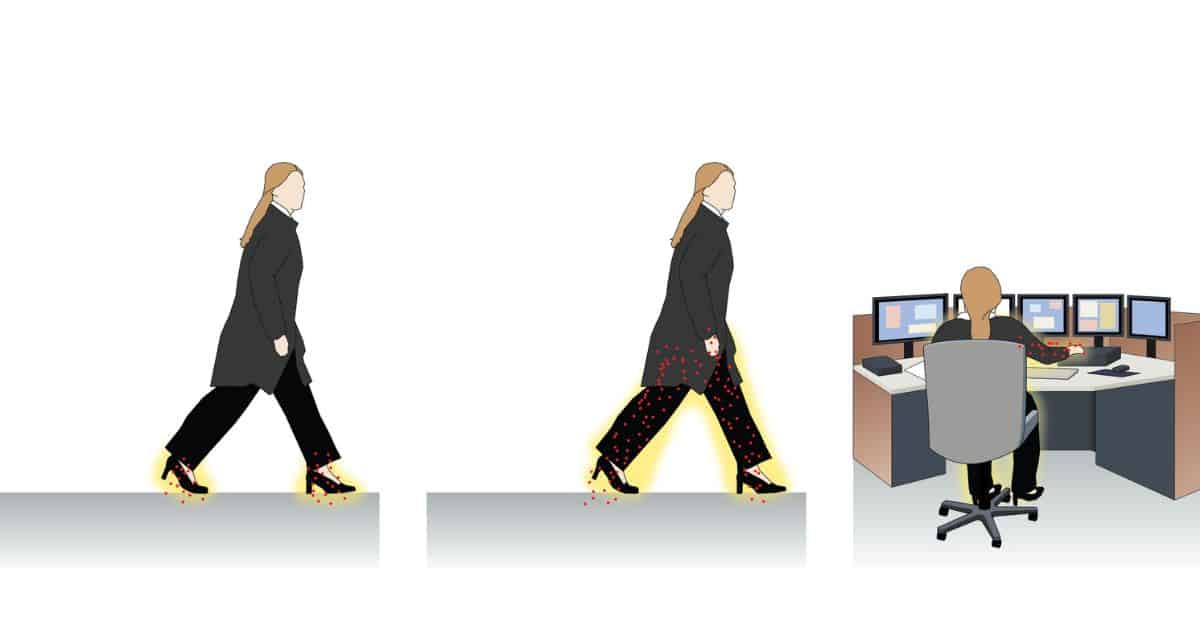

The static charge, in volts, generated by a person walking across the floor. Static charges that accumulate on the body discharge to the first object the person touches, potentially damaging or disrupting sensitive electronics. Learn about how ESD flooring works

Learn More

Voltage Suppression

Voltage suppression occurs when an ESD-protective material, such as a static-dissipative table covering, suppresses static charges rather than dissipating charges to ground. For instance, an ESD laminate with a buried conductive layer will suppress the electrostatic field from a charged object, but is incapable of discharging static even when the charged object touches its surface.

Learn More

Volatile Organic Compounds (VOCs)

Gases emitted from certain solids or liquids, including a variety of chemicals, which may have short- and long-term adverse health effects. Concentrations are consistently higher indoors than outdoors: often up to ten times higher. Flooring should always be tested for VOC content by independent certification organizations like FloorScore and GreenGuard.

Learn More

Triboelectric Series

A list of common materials, such as leather, nylon, wool, and paper, showing whether a material tends to give up or take on electrons when in frictional contact with other materials on the list. Those that give up electrons become positively charged, and materials that accept electrons become negatively charged. In the ESD industry, the

Learn More

Triboelectric Charging

Whenever two objects with different electrical characteristics make contact and separate, the molecules in the two materials interact, forming an electrical bond. Separating the materials creates friction. This frictional force draws electrons away from one material and deposits an excess of electrons on the other, leaving a positive or negative electrical charge on both materials.

Learn More

Total Cost of Ownership

The real cost of a product, encompassing the cost of the material, along with installation, maintenance, anticipated repairs and necessary monitoring. These hidden costs are often overlooked or ignored in the initial cost analysis, but they add up and over time can outpace the expense of owning a floor with a higher material cost. For

Learn More

Ready to Eliminate Static Risk?

When your facility’s protection depends on getting it right the first time, choose
the company with an unmatched track record. We’re standing by to assist you.
