StaticWorx ESD Carpet Line:

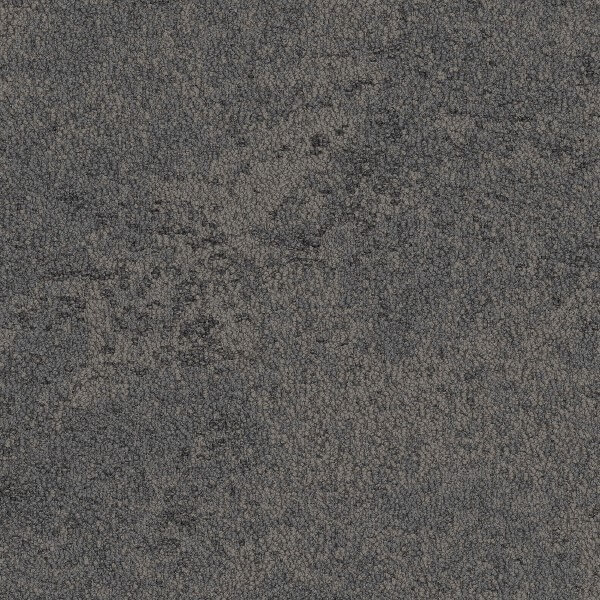

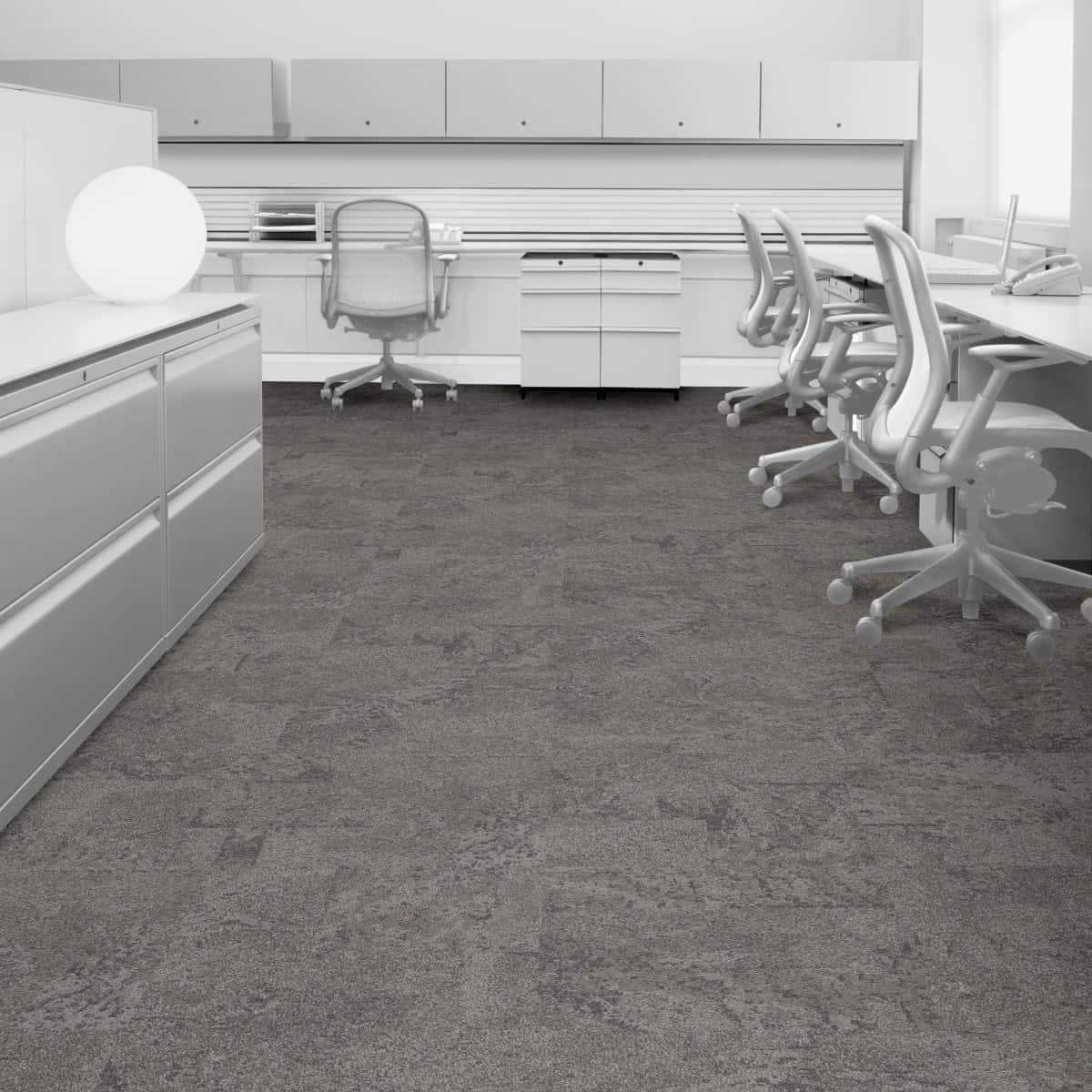

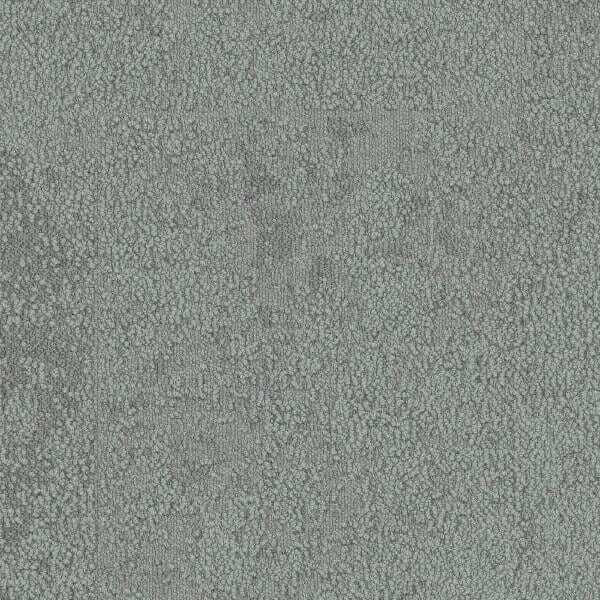

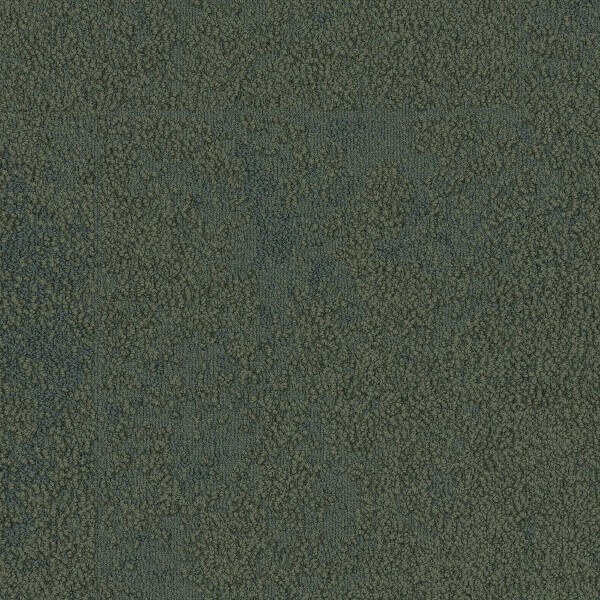

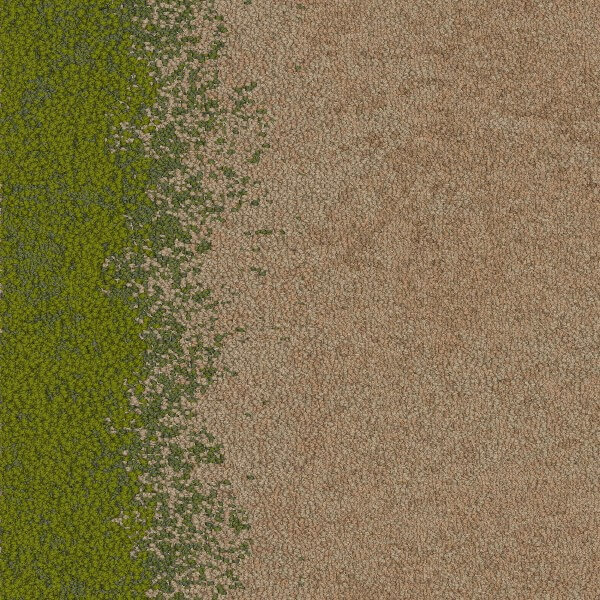

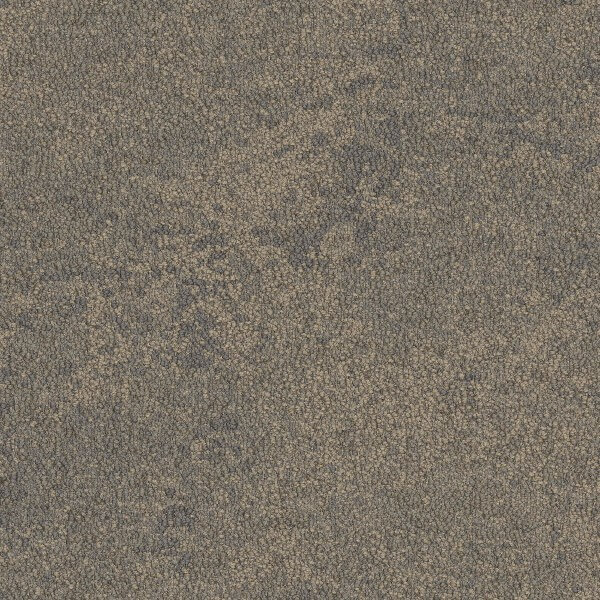

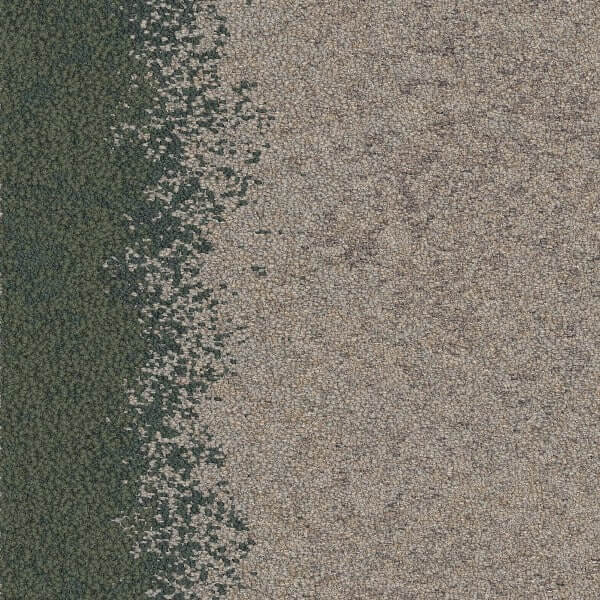

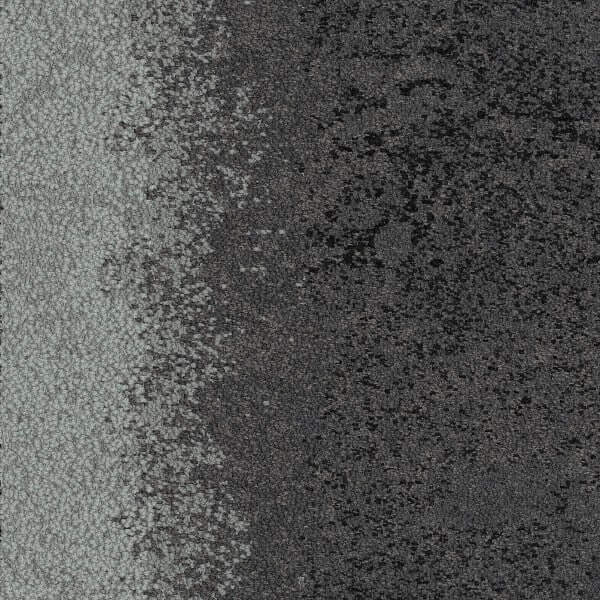

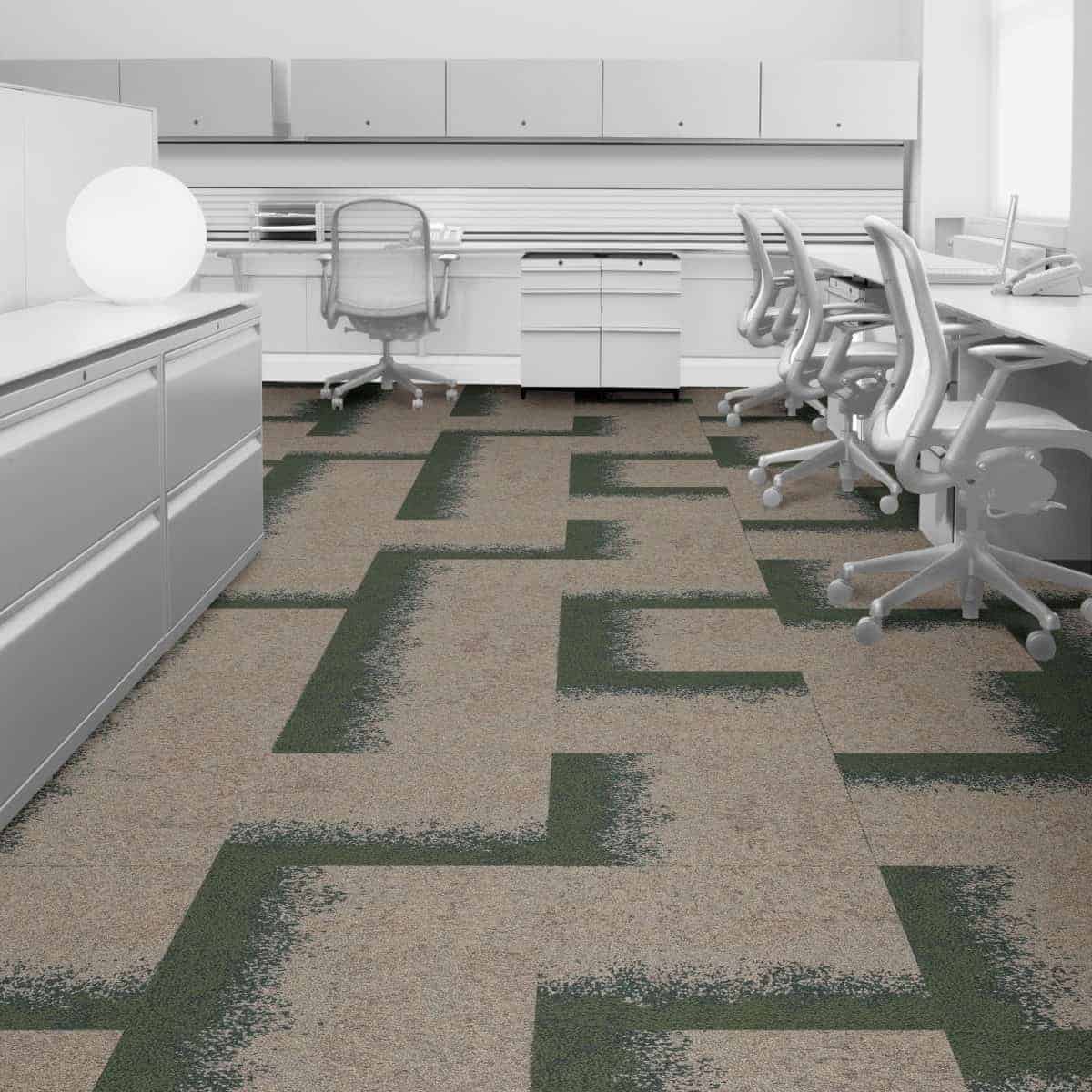

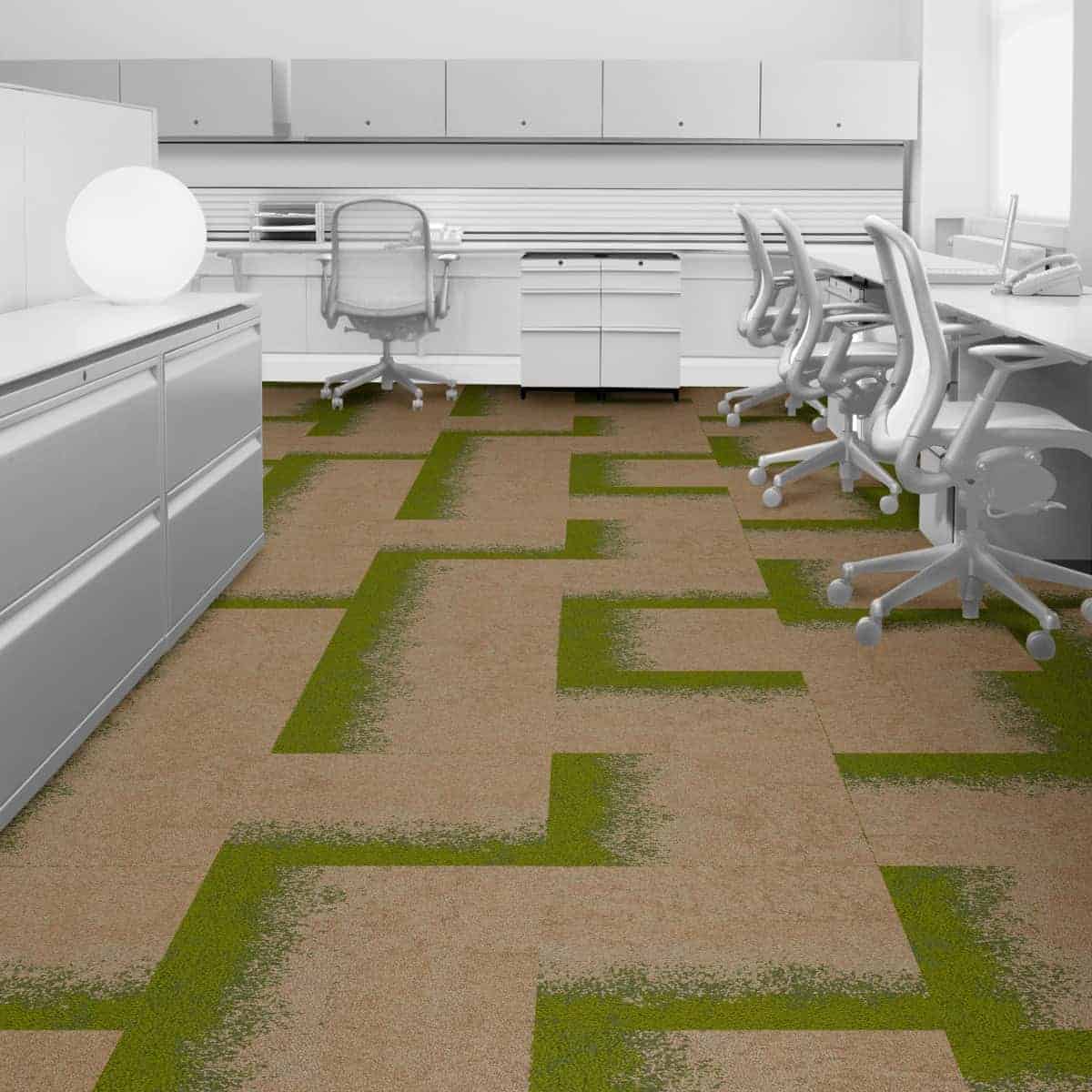

ShadowFX Vermont Fields & Stone Collection

Humans instinctively crave a connection to nature. Time spent in holistic places like Vermont provides a sense of comfort and wellbeing while promoting physical and mental health.

Inspired by the natural world, our ShadowFX Vermont Fields and Stone Carpet Tile Collection brings nature into the workspace, evoking feelings of serenity and refuge. A fusion of organic design and neutral color palette makes this dynamic collection as ideal for urban as for country or rural environments.

%

ShadowFX Vermont Fields & Stone offers non-directional installation with only 1.5% waste

%

Compared to 14% waste for traditional directional carpet.

An Oasis of Calm in High-stress ESD Environments

Reliance on state-of -the-art ESD sensitive equipment goes hand in hand with control rooms, dispatch centers, 24/7 mission critical applications and technology environments. These environments tend to be fast-paced with high stakes. We introduced our StaticWorx Fields and Stone collection to offer a sense of calmness in these hectic, high-stress environments.

Why Choose ShadowFX ESD Carpet Vermont Fields & Stone Collection?

100% Carbon Neutral

ShadowFX ESD carpet tile is made by an industry leader in the development of flooring made using recycled materials and 100% Carbon Neutral for the total life cycle.

Non-Directional Installation

Install tiles in any order or orientation with no pattern matching required.

Only 1.5% Waste

Significantly less installation waste compared to 14% average for directional carpet.

Organic Design

Inspired by the natural world, our ShadowFX Vermont Fields and Stone Carpet Tile Collection brings nature into the workspace.

Glue-Free Installation

Install with TacTiles for adhesive-free, 24/7 installation with zero downtime.

Permanent ESD Protection

Helix 44-denier conductive fiber ensures lifetime static control performance.

What Clients are Saying
quotes

“[ShadowFX carpet] was installed during a two-week installation window at a military base in Florida. The specifications for this RSS required ESD carpet and the product from StaticWorx integrated perfectly!”

Jeff Lucas, Director of Project Management SEA BOX, Inc.
quotes

Carpet installation went silky smooth. Fast, clean, and the system performed exactly as expected.

Chris Ervin, Director of Architectural Interiors LEED AP
Product Technical Specifications

ShadowFX ESD Carpet Vermont Fields & Stone Collection Technical Information & Support

Physical Properties

Tile Size
50cm x 50cm

(19.69″ x 19.69″)

Available in 24″ x 24″
Installation
Non-Directional
Total Thickness Use
0.217 in
Pile Thickness
0.074 in
Tufted Yarn
weight
Volume conductive
Tufted Yarn

weight
15 oz/yd?
Pile Density
7,297 oz/yd3
Yarn Construction
Tufted Textured Loop
Dye Method
100% Solution Dyed
Warranty
Lifetime

Electrical Properties

Conductive Fiber
StaticWorx Helix 44 Denier
kV Rating
(AATCC 134-1996)
< 0.4 KV (400 volts)

@ 12% RH
Body Voltage
(ANSI/ESD S97.2)
< 100 volts
System
Resistance (ESD S7.1)
1.0 × 10° – 1.0 x 10° ohms
Standards Met
ANSI/ESD S20.20
NFPA 99
Motorola R56
ATIS-0600321
FAA STD 019f
D.O.D.
HDBK263A
Meets Class 1

 sensitive ESD devices
Backing System
Permanent static-dissipative

Environmental & Performance

Country
Manufactured
United States
Total Recycled
Content
58% (56% post-industrial,
2% post-consumer)
Carbon Footprint
Certified Carbon Neutral
Floors T™
Embodied
Carbon
6.58 Kg CO
Radiant Panel
Class 1 (ASTM E 648)
Smoke Density
≤ 450 (ASTM E 662)
Traffic
Classification
Severe
24/7
Factory Rated

StaticWorx ESD Carpet TileFrequently Asked Questions

How does non-directional installation save money?

Non-directional installation means tiles can be laid in any order or orientation with no pattern matching required. This results in only 1.5% installation waste compared to 14% for traditional directional carpet. That means more of your floorcovering investment stays on your floor instead of in a dumpster, saving you money on materials and labor.

Can I install ShadowFX Carpet Tiles without adhesive?

Yes! All ShadowFX carpet tiles can be installed as a floating floor over any hard surface using GroundBridge underlayment and TacTiles connectors. This glue-free installation method eliminates VOCs, allows 24/7 installation with no downtime, and enables immediate use.

How does ShadowFX carpet hide wear better than traditional carpet?

ShadowFX uses biomimetic design principles where tiles vary in pattern and color within each style. This random, non-directional design masks pile crush and traffic wear patterns that would be obvious on solid or linear carpets. Replacement tiles blend seamlessly with older tiles.

What standards does ShadowFX carpet meet?

ShadowFX meets or exceeds ANSI/ESD S20.20 requirements for static-dissipative flooring, NFPA 99 for healthcare applications, and IEC 61340-5-1 international standards. All products are independently tested and certified by a third-party lab.

How much installation waste should I expect?

Non-directional ShadowFX collections (Patterns, Cubic, Fields & Stone) average only 1.5% installation waste compared to 14% for directional carpet tiles. This means more of your investment stays on the floor, not in a dumpster.

What maintenance is required for ShadowFX carpet?

ShadowFX requires simple routine maintenance: regular vacuuming and periodic cleaning with approved ESD-safe carpet cleaner. The dissipative properties never wash out or wear away.
