StaticWorx Static-dissipative (SD) Carpet Tile: ShadowFX Vermont Slate Collection

Built to withstand heavy traffic and abuse and designed to address the most stringent static control requirements – making Vermont Slate ideal for any application from electronics manufacturing to labs to 24/7 critical environments

ANSI/ESD S20.20 Compliant
Green Label Plus Certified

Install Capability

< V

Body Voltage

Warm. Durable. Inspired by Nature.

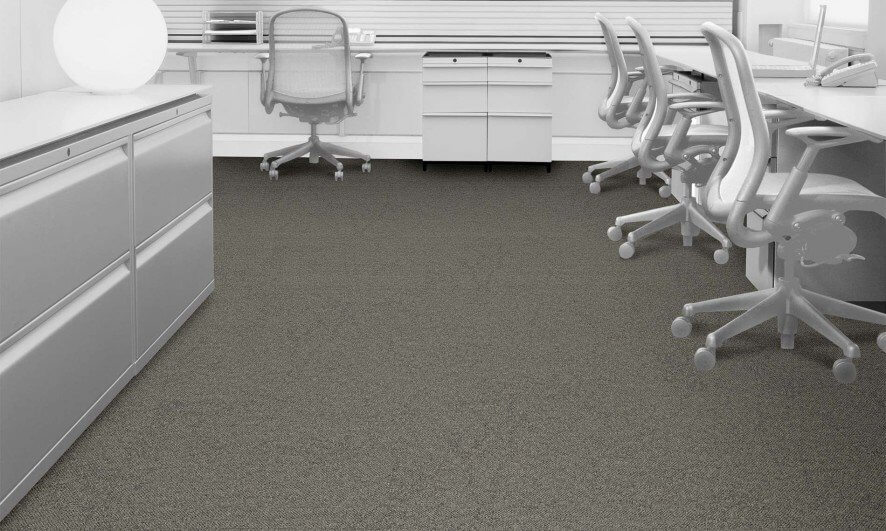

StaticWorx Vermont Slate carpet-tile collection provides the durability and high performance you expect from StaticWorx floors in a design that transports you to the mountains of Vermont. Warm, monochromatic earth tones promote a peaceful environment, inspiring creativity and a sense of wellbeing and connectedness.

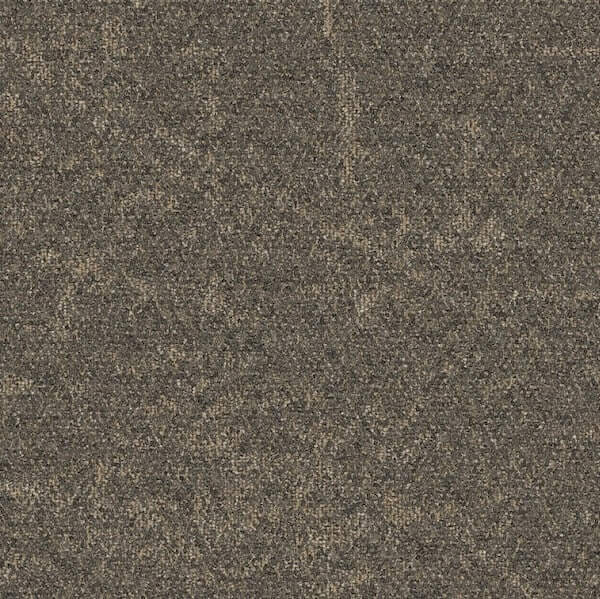

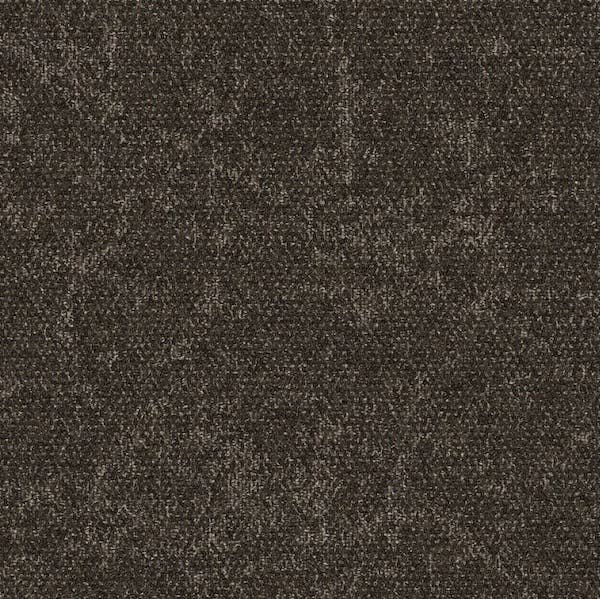

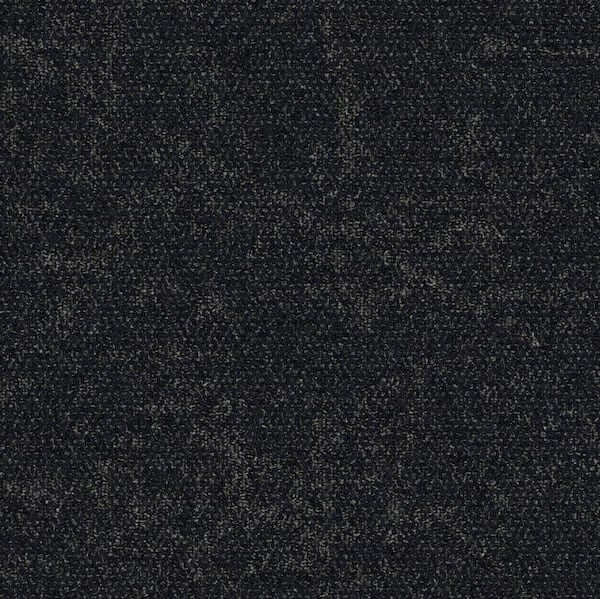

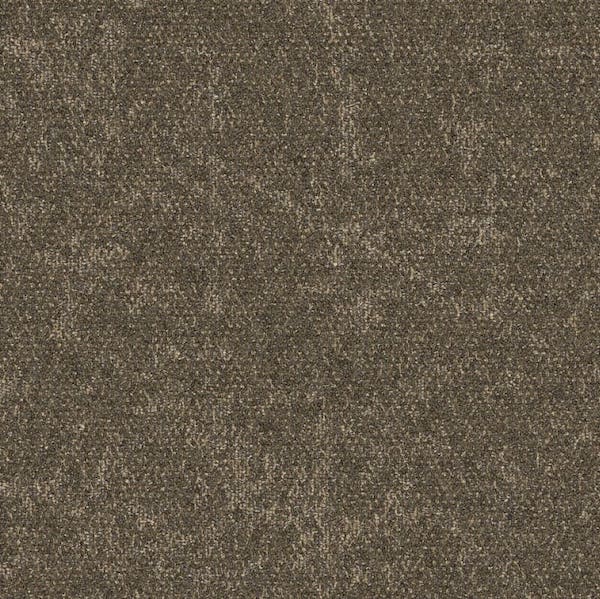

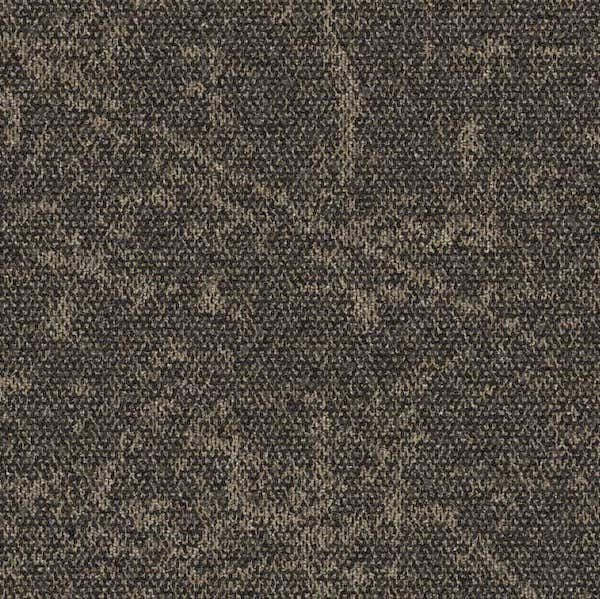

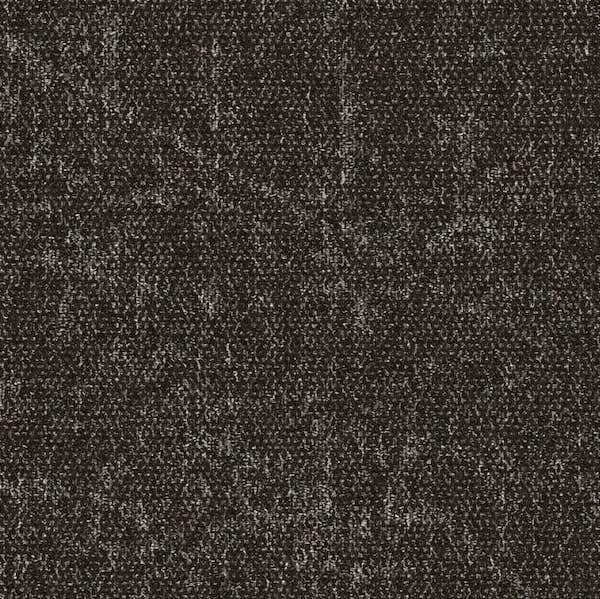

The rock-like etchings in our Vermont Slate carpet tiles flow seamlessly across the surface of the floor in a non-directional or monolithic installation. Merge-ability enables mixing dye lots and saves money by allowing you to add new or replace worn or damaged tiles without worrying about dye lot compatibility.

Why Choose ShadowFX ESD Carpet Pattern Collection?

Mergeable, Natural Design

Eliminates worry about matching dye lots. Unique design patterns use biomimicry to simulate the random beauty of nature.

Non-Directional Installation

Non-directional design eliminates the hassle of matching patterns and dye batches, and hides wear and tear—the main cause of carpet tile replacement – resulting in significant savings.

Sustainable, Durable, Reliable

Contains 59% recycled content and has low-emitting material. Withstands over 100,000 cycles of Phillips roller caster chair test.

Convenient and Cost Effective

Installed with releasable adhesives – allowing for easy removal of individual tiles, No need to remove rolls of broadloom – significantly reduces installation waste.

Glue-Free Installation

Install with TacTiles for adhesive-free, 24/7 installation with zero downtime.

Permanent ESD Protection

Helix 44-denier conductive fiber ensures lifetime static control performance.

What Clients are Saying
quotes

“[ShadowFX carpet] was installed during a two-week installation window at a military base in Florida. The specifications for this RSS required ESD carpet and the product from StaticWorx integrated perfectly!”

Jeff Lucas, Director of Project Management SEA BOX, Inc.
quotes

Carpet installation went silky smooth. Fast, clean, and the system performed exactly as expected.

Chris Ervin, Director of Architectural Interiors LEED AP
Product Technical Specifications

ShadowFX Vermont Slate Collection Technical
Information & Support

Physical Properties

Tile Size
50cm x 50cm

(19.69″ x 19.69″)

Available in 24″ x 24″
Installation
Non-Directional, Monolithic
Total Thickness Use
0.217 in
Pile Thickness
0.074 in
Tufted Yarn
weight
Volume conductive
Tufted Yarn

weight
17 oz/yd
Pile Density
7,297 oz/yd3
Yarn Construction
Tufted Textured Loop
Dye Method
100% Solution Dyed
Warranty
Lifetime

Electrical Properties

Conductive Fiber
StaticWorx Helix 44 Denier
kV Rating
(AATCC 134-1996)
< 0.4 KV (400 volts)

@ 12% RH
Body Voltage
(ANSI/ESD S97.2)
< 100 volts
System
Resistance (ESD S7.1)
1.0 × 10° – 1.0 x 10° ohms
Standards Met
ANSI/ESD S20.20
NFPA 99
Motorola R56
ATIS-0600321
FAA STD 019f
D.O.D.
HDBK263A
Meets Class 1

 sensitive ESD devices
Backing System
Permanent static-dissipative

Environmental & Performance

Country
Manufactured
United States
Total Recycled
Content
Total 59%
Pre-consumer 57%, Post-consumer 2%
Carbon Footprint
Certified Carbon Neutral
Floors T™
Embodied
Carbon
6.58 Kg CO
Radiant Panel
Class 1 (ASTM E 648)
Smoke Density
≤ 450 (ASTM E 662)
Traffic
Classification
Severe
24/7
Factory Rated

StaticWorx ESD Carpet TileFrequently Asked Questions

How does non-directional installation save money?

Non-directional installation means tiles can be laid in any order or orientation with no pattern matching required. This results in only 1.5% installation waste compared to 14% for traditional directional carpet. That means more of your floorcovering investment stays on your floor instead of in a dumpster, saving you money on materials and labor.

Can I install ShadowFX Vermont Slate without adhesive?

Yes! All ShadowFX carpet tiles can be installed as a floating floor over any hard surface using GroundBridge underlayment and TacTiles connectors. This glue-free installation method eliminates VOCs, allows 24/7 installation with no downtime, and enables immediate use.

What is biophilic design and why does it matter?

Biophilic design is based on biomimicry – the study and imitation of nature’s best ideas. ShadowFX Vermont Slate mimics organic designs found in nature, which research shows promotes wellbeing, reduces stress, and creates a sense of calm in the workplace. This connection to nature can improve productivity and employee satisfaction.

How do the colorways vary from tile to tile?

Colorways in ShadowFX Vermont Slate vary from tile to tile within the same style – this is intentional and a key feature of the design. This variation masks wear patterns and pile crush that would be obvious on solid or linear carpets. Replacement tiles blend seamlessly with older tiles because there’s no exact pattern to match. The dye lots are mergeable, eliminating concerns about matching batches.

What standards does ShadowFX Vermont Slate meet?

ShadowFX Vermont Slate meets or exceeds: ANSI/ESD S20.20 (electronics manufacturing EPAs), NFPA 99 (healthcare), Motorola R56 and ATIS-0600321 (telecommunications), FAA STD 019f (flight control), and D.O.D. HDBK263A Section 40.1.2 (Class 1 sensitive ESD devices). Body voltage generation is less than 100 volts, well within the required range.

Can ShadowFX Vermont Slate be used on raised access floors?

Absolutely! ShadowFX Vermont Slate is available in 24″ x 24″ size for one-to-one access floor installation. The permanent static-dissipative backing grounds upon contact with metal access panels, providing immediate static control. Tiles are easily lifted for access to underfloor cabling and infrastructure. Installation over bare metal access panels is simple using TacTiles.

How is ShadowFX Vermont Slate environmentally sustainable?

ShadowFX Vermont Slate has 59% total recycled content and is manufactured in a 100% carbon-neutral facility, making it Certified Carbon Neutral Floors™. The embodied carbon is only 6.58 Kg CO₂/M². All ShadowFX products are made by an industry leader in sustainable flooring development. The minimal installation waste (1.5%) also contributes to sustainability.

What maintenance is required for ShadowFX carpet?

ShadowFX requires simple routine maintenance: regular vacuuming and periodic cleaning with approved ESD-safe carpet cleaner. The dissipative properties never wash out or wear away.

What adhesive should I use with ShadowFX Vermont Slate?

Only use StaticWorx-approved conductive adhesives. For traditional glued installations, we recommend GroundTack pressure-sensitive adhesive for immediate traffic handling. For glue-free installations, use TacTiles self-stick connectors with GroundBridge underlayment. Using non-approved adhesives may void your warranty and compromise ESD performance.
