Realizing you need an ESD floor—also known as an antistatic floor or static-control floor—is only the beginning. How can you be sure you’re choosing the right floor for your application and environment?
The answer depends on multiple factors: Will people wear special ESD footwear in the space? Do you know the ESD standards specific to your industry? What are your primary objectives? Beyond static control, do you prioritize aesthetics, durability, cleanliness, ease of installation, or wear resistance?
With a StaticWorx ESD floor, you get permanent static control backed by a lifetime warranty. Our team provides objective, research-based guidance to help you select the perfect flooring solution.
Whether you’re an architect, contractor, facility manager, or property owner, you have a lot at stake—time, money, and reputation. Here you’ll find comprehensive information about all our ESD flooring options, organized by material type, to help you start
Find the Right ESD Flooring
What type of facility do you have?
Will personnel wear ESD footwear?
What is your primary concern?
What environmental factors apply?
What’s your budget range per square foot?
Download our comprehensive Step-by-Step Guide to Choosing an ESD Floor
Why Choose StaticWorx for Your ESD Flooring Needs?
Permanent Static Protection
Every StaticWorx ESD floor delivers reliable, permanent static control backed by our lifetime conductivity warranty. Our floors meet or exceed all relevant industry standards including ANSI/ESD S20.20, Motorola R56, ATIS-0600321, and FAA-STD-019f.
Application-Specific Solutions
We don’t believe in one-size-fits-all flooring. Our team evaluates your unique application, environment, and objectives to recommend the optimal flooring solution—whether that’s carpet, vinyl, rubber, epoxy, or interlocking tiles.
Expert Technical Support
From initial specification through installation and beyond, our technical experts provide ongoing guidance. We help you navigate industry standards, testing requirements, and installation best practices to ensure project success.
Explore StaticWorx ESD Flooring Options
StaticWorx offers six primary flooring material types, each engineered for specific applications and environments. Click any option below to explore detailed product information, technical specifications, and application guidance.

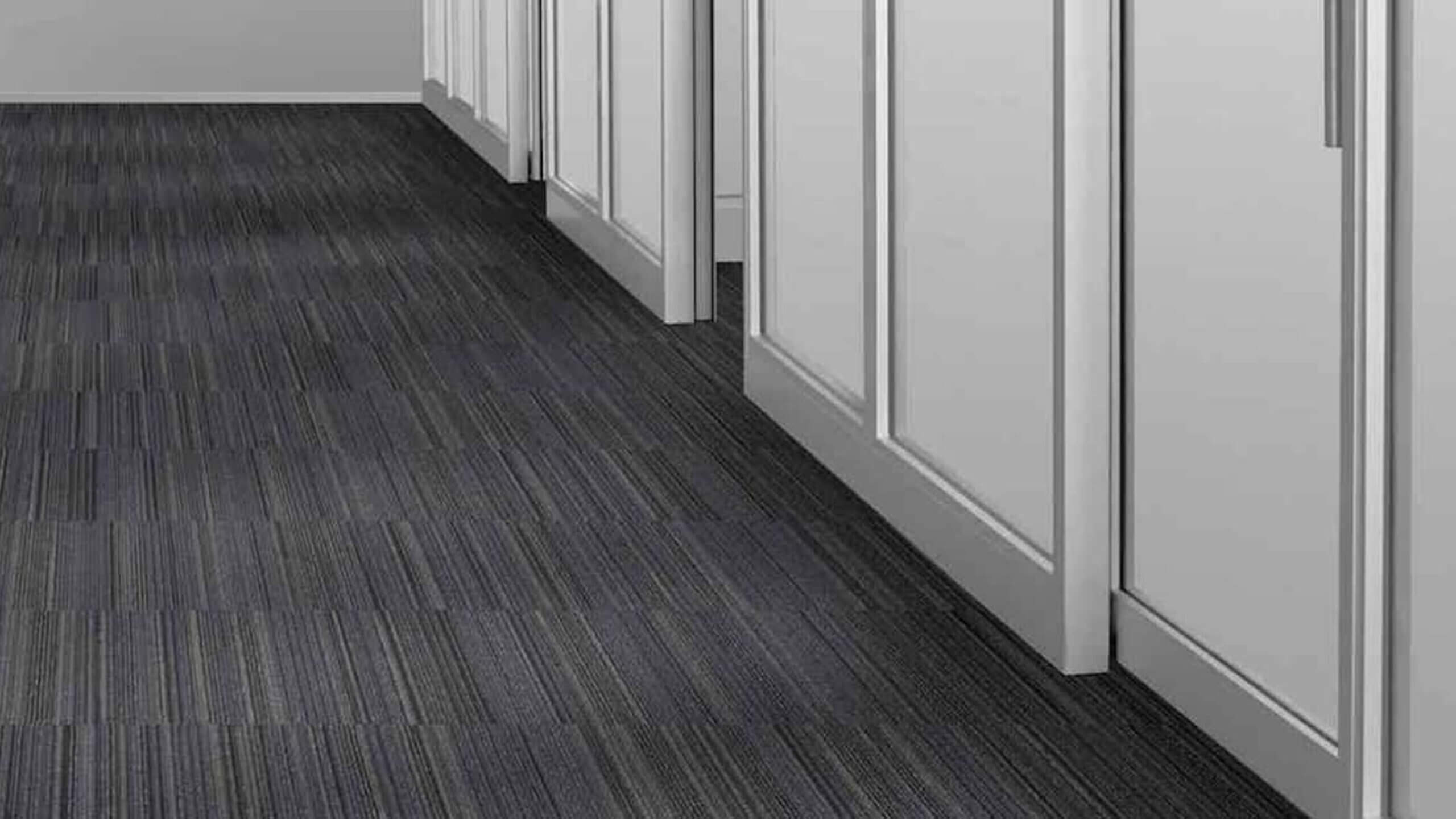

STATIC-DISSIPATIVE CARPET
ShadowFX Static-Dissipative Carpet Tile
Our ESD carpet tiles and planks provide the durability and high performance you expect from StaticWorx floors—in soothing earth-tone patterns that flow seamlessly across your space. ShadowFX features 100% commercial nylon fiber with permanent static-dissipative properties, available in eight distinct collections and 50+ colorways.
Key Features
- S20.20 compliant: 2.5 × 10E4 to 1.0 × 10E8 ohms resistance
- 100% commercial nylon fiber construction
- 50+ colorways across 8 collections
- Lifetime conductivity warranty
- Sustainable: Carbon neutral, CRI Green Label Plus certified
- Available in 24″ × 24″ tiles and plank formats
Technical Specifications
- Electrical Resistance: 2.5 × 10E4 to 1.0 × 10E8 ohms
- Charge Decay: 0.01 sec per FTM 101C
- Tile Size: 24″ × 24″ or plank configurations
- Installation: Brick, ashlar, quarter-turn, monolithic patterns
ShadowFX Collections
Best For:
Data centers, control rooms, dispatch centers, networked offices, raised access floors

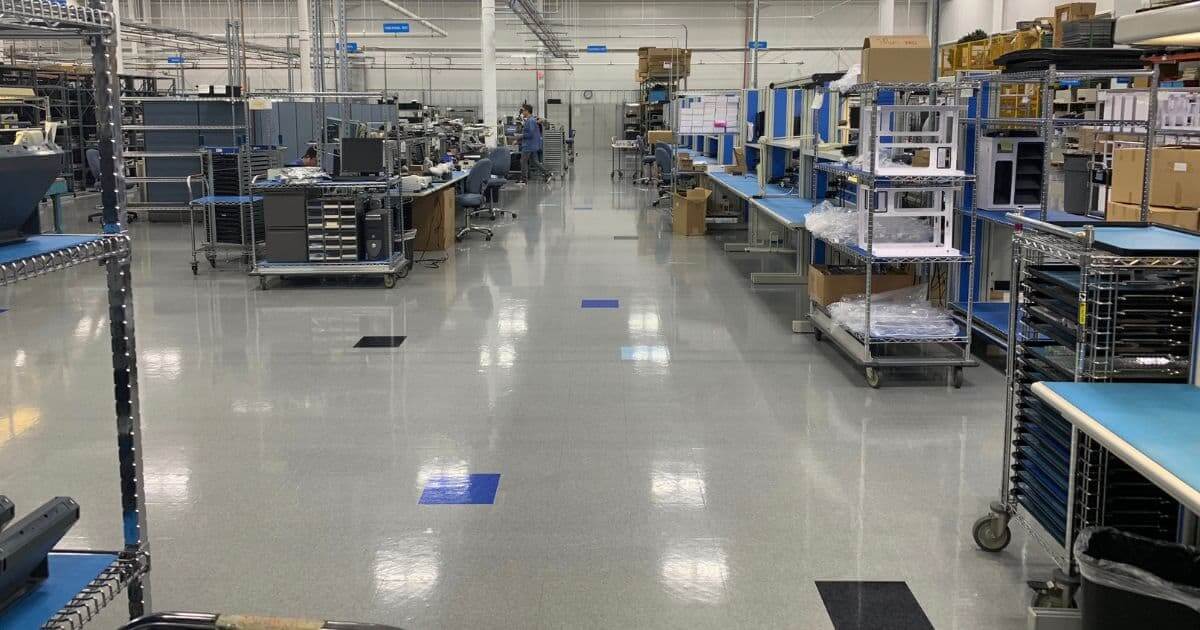

ELECTRICALLY CONDUCTIVE VINYL
AmeriWorx ESD Solid Vinyl Tile (SVT)
If you’re looking for a durable, mid-cost ESD floor with a clean, hospital-like shine, AmeriWorx vinyl delivers exceptional performance and aesthetics. Our conductive vinyl tiles offer permanent through-the-product conductivity with excellent chemical resistance and easy maintenance. Available in two distinct collections: AmeriWorx Classics and AmeriWorx Rox.
Key Features
- Electrically conductive: < 1.0 × 10E6 ohms
- Through-the-product conductivity—never wears away
- Superior chemical and stain resistance
- Easy to clean and maintain with durable shine
- Two collections: Classics (traditional patterns) and Rox (nature-inspired designs)
- Ideal for cleanrooms, labs, and manufacturing facilities
Technical Specifications
- Electrical Resistance: < 1.0 × 10E6 ohms (conductive)
- Tile Size: 12″ × 12″ standard
- Thickness: 2.5mm nominal
- Wear Layer: Permanent conductive formula
- Installation: Conductive adhesive required
AmeriWorx Collections
Best For:
Electronics manufacturing, cleanrooms, laboratories, pharmaceutical facilities, hospitals
PREMIUM RUBBER FLOORING
Eclipse EC & SD Rubber Flooring
Tough, ergonomically designed ESD rubber flooring—a premium product for discerning buyers—meets the cleanliness and Class-0 ESD requirements of the most stringent lab or cleanroom environments. Our electrically conductive (EC) and static-dissipative (SD) rubber options provide superior comfort, durability, and static protection.
Key Features
- Available in electrically conductive (EC) and static-dissipative (SD) formulations
- Exceptional ergonomic benefits reduce fatigue
- Superior chemical resistance and durability
- Seamless welded installations available for cleanroom applications
- Class-0 ESD performance for critical environments
- Available in tiles, sheets, and custom runners/mats
Technical Specifications
- Eclipse EC Resistance: < 1.0 × 10E6 ohms (conductive)
- SD Rubber Resistance: 1.0 × 10E6 to < 1.0 × 10E9 ohms (dissipative)
- Tile Size: 24″ × 24″ standard
- Sheet Widths: Up to 4′ wide
- Thickness: 2.5mm, 3.0mm, or custom
Rubber Flooring Products
Best For:
Cleanrooms, laboratories, hospitals, imaging suites, pharmaceutical manufacturing, areas requiring ergonomic benefits

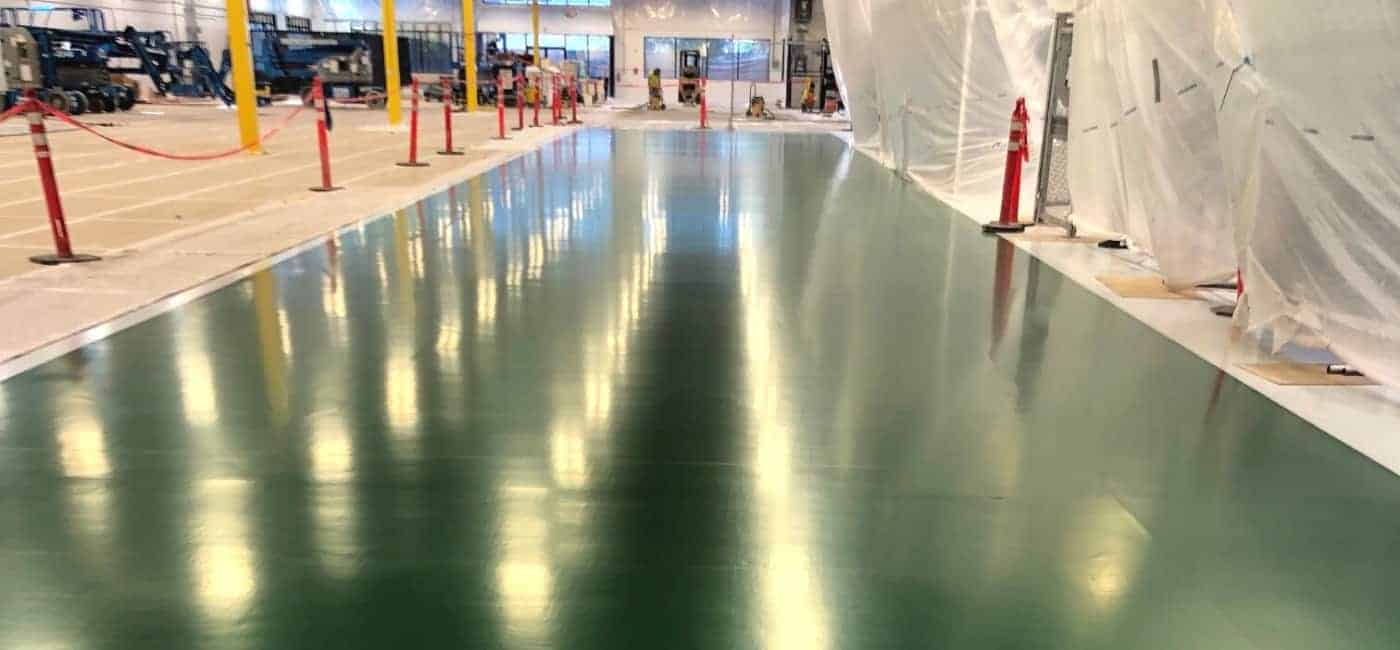

SEAMLESS EPOXY SYSTEMS
GroundWorx ESD Epoxy Flooring & Coatings
Our ESD epoxy and coating systems are tough, long-lasting, and economical—delivering seamless static-control surfaces for demanding industrial environments. We recently heard from a client who installed a GroundWorx epoxy floor over twenty years ago, and they still love it today. Available in two performance tiers: GroundWorx Basics and GroundWorx Ultra.
Key Features
- Seamless, monolithic surface—no grout lines
- Exceptional chemical and abrasion resistance
- Long service life: 20+ years with proper maintenance
- Two formulations: Basics (value-engineered) and Ultra (high-performance)
- Low VOC, low-odor installation
- Unlimited color options available
Technical Specifications
- Electrical Resistance: < 1.0 × 10E6 ohms (conductive)
- System Thickness: 60-125 mils typical
- Compressive Strength: 7,000+ psi
- Chemical Resistance: Excellent to acids, alkalis, solvents
- Cure Time: 24-72 hours to light traffic
GroundWorx Epoxy Flooring and Coatings Systems
Best For:
Electronics manufacturing, heavy industrial facilities, warehouses, production areas, aerospace facilities

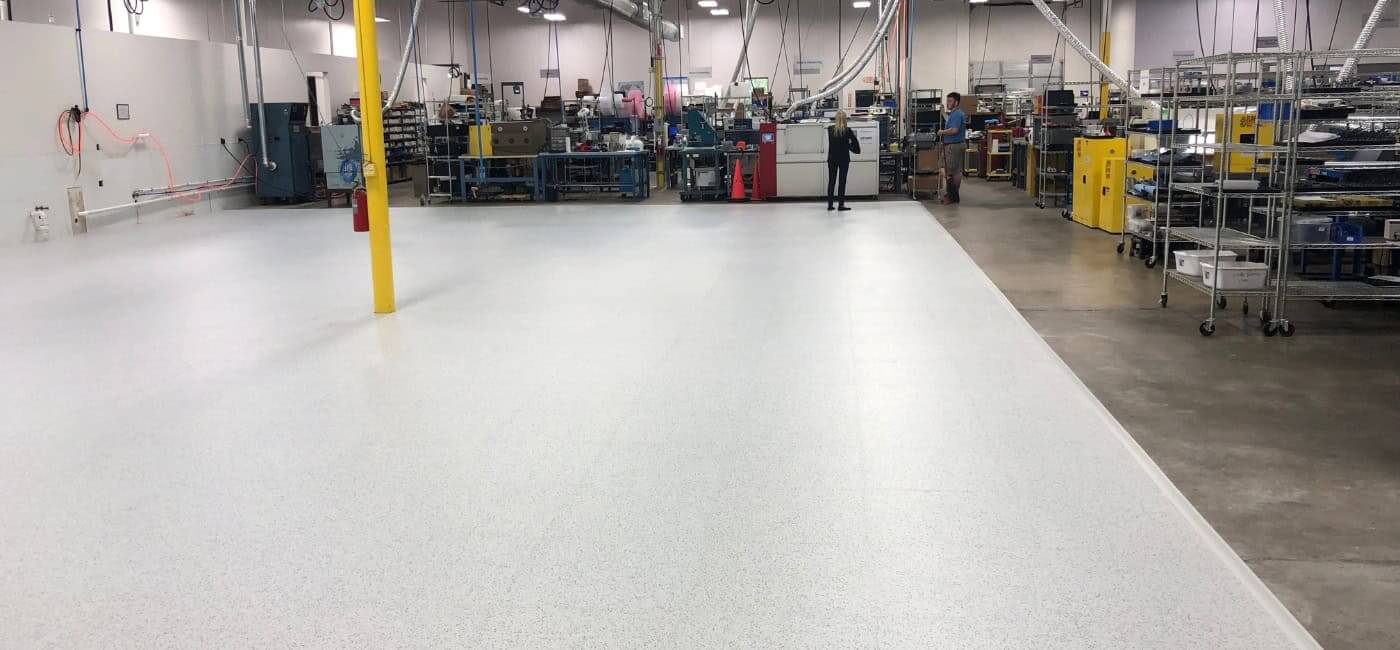

ADHESIVE-FREE INSTALLATION
GroundLock & StatLock Interlocking ESD Tiles
With our snap-together ESD floors, you can install a new static-control surface without disrupting 24/7 operational spaces. No adhesives, no downtime, no odors—just reliable ESD protection that installs in hours instead of days. Perfect for retrofit projects and mission-critical facilities that can’t afford downtime.
Key Features
- Adhesive-free installation—no curing time required
- Install over most existing floors
- Fully removable and reusable
- Minimal downtime: walk-on immediately after installation
- Multiple product options: GroundLock Extreme, GroundLock Lay-Flat, StatLock SD
- Ideal for 24/7 operations and raised access floors
Technical Specifications
- Electrical Resistance: Varies by product (conductive to dissipative)
- Tile Size: 18″ × 18″ or 24″ × 24″ depending on product
- Thickness: 7mm to 10mm
- Installation: Interlocking tabs, no adhesive required
- Load Rating: 2,000+ lbs rolling load capacity
Interlocking Flooring Options
Best For:
24/7 operations, data centers, server rooms, retrofit projects, temporary installations, raised access floors
SPECIALTY SOLUTIONS
Specialty ESD Flooring & Budget-Friendly Options
StaticWorx offers specialized ESD flooring solutions for unique applications including ESD-safe seating, budget-conscious installations, and compliance-driven projects. Our bioSTAT contractor line and Bolt ESD chairs round out our comprehensive static-control product portfolio.
Key Specialty Products
Bolt ESD-Safe Chairs
- Ergonomic task seating with permanent static-dissipative properties
- Multiple models for laboratory, cleanroom, and office environments
bioSTAT Budget-Friendly ESD Flooring
- Cost-effective static-control solutions without compromising performance
- Includes bioSTAT 24 Vinyl Tile, GroundWorx Basics, StatLock Interlocking
LabCon SD Vinyl Sheet & Tile
- Heat-welded seams for seamless, bacteria-resistant installations
- Ideal for hospitals, laboratories, and pharmaceutical facilities

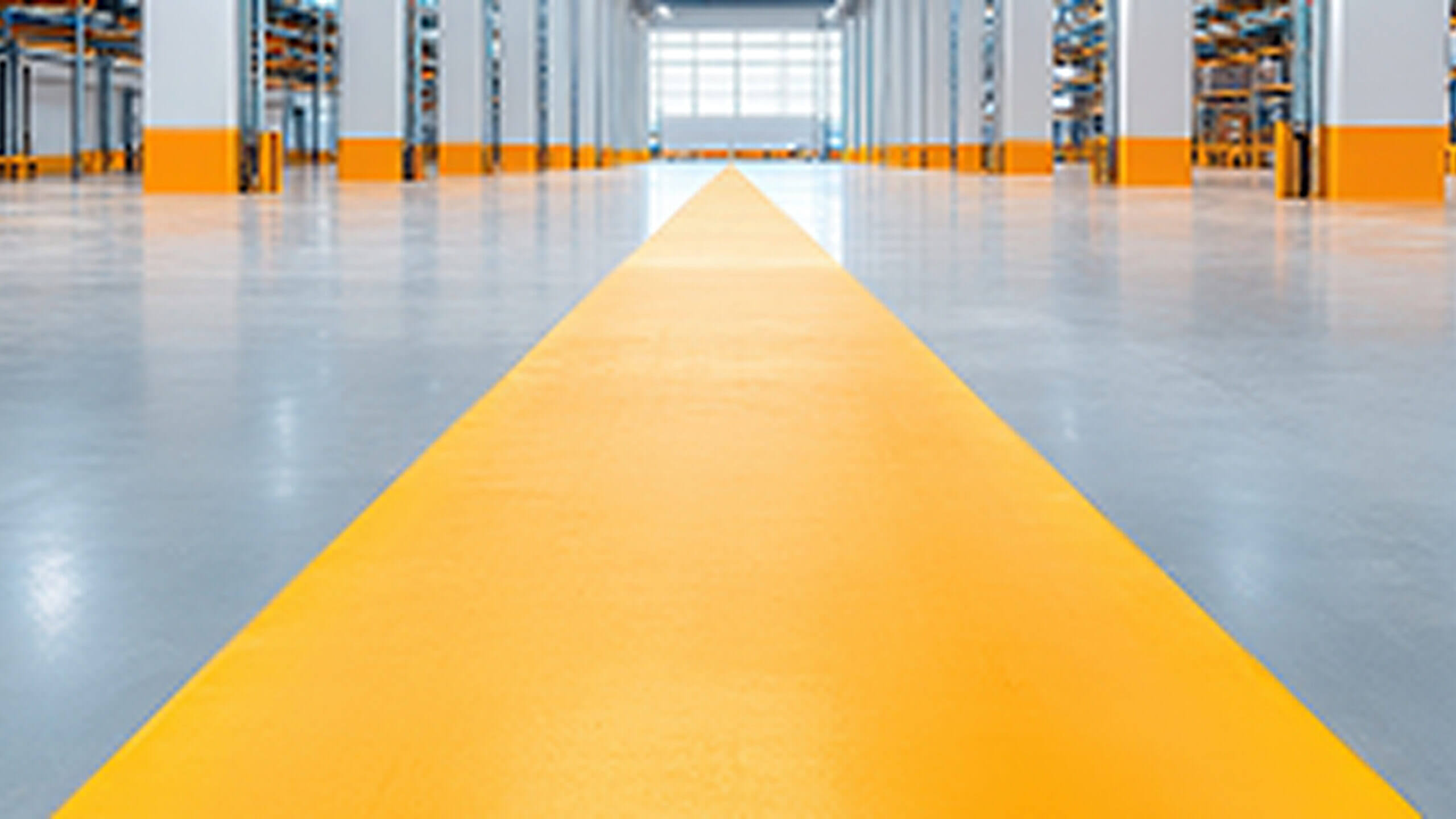

ESD Message Tiles
- Custom messaging and wayfinding integrated into your ESD floor
- Available for GroundLock interlocking systems

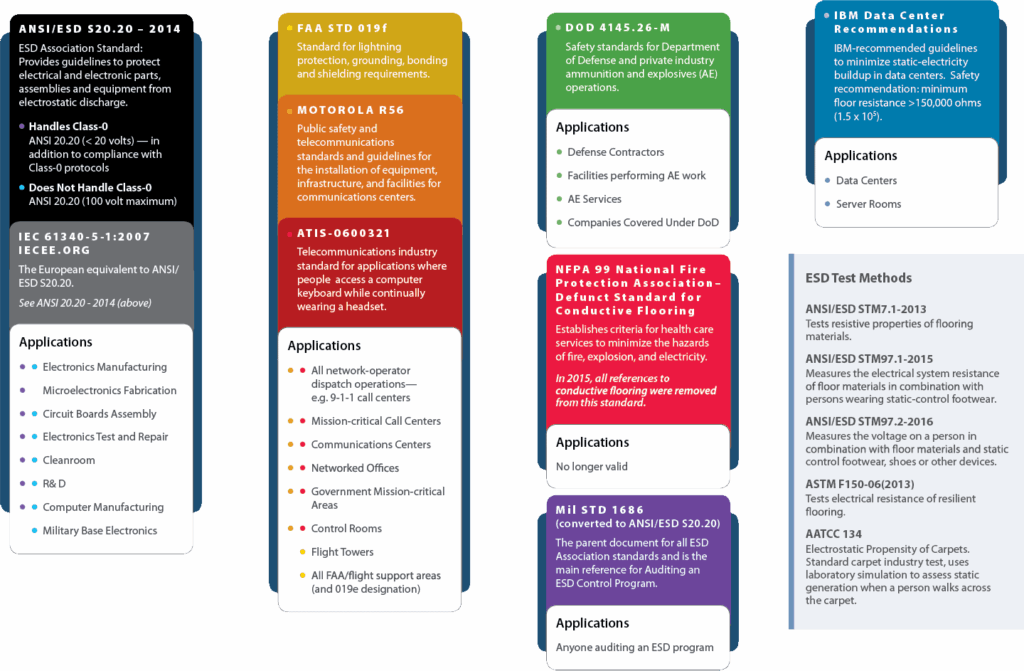

ESD Standards & Testing Requirements
ESD flooring standards vary significantly by industry and application. Understanding which standards apply to your project is critical for compliance and performance.
Manufacturing & Handling (Footwear Required)
ANSI/ESD S20.20 Requirements:
- Point to Ground: < 1.0 × 10E9 ohms
- System Resistance (Footwear + Floor): < 1.0 × 10E9 ohms
- Body Voltage Generation: < 100V peak
Test Methods:
- ANSI/ESD STM7.1 (Floor Resistance)
- ANSI/ESD STM97.1 (System Resistance)
- ANSI/ESD STM97.2 (Walking Body Voltage)
Applicable Industries: Electronics manufacturing, PCB assembly, semiconductor fabrication, aerospace assembly

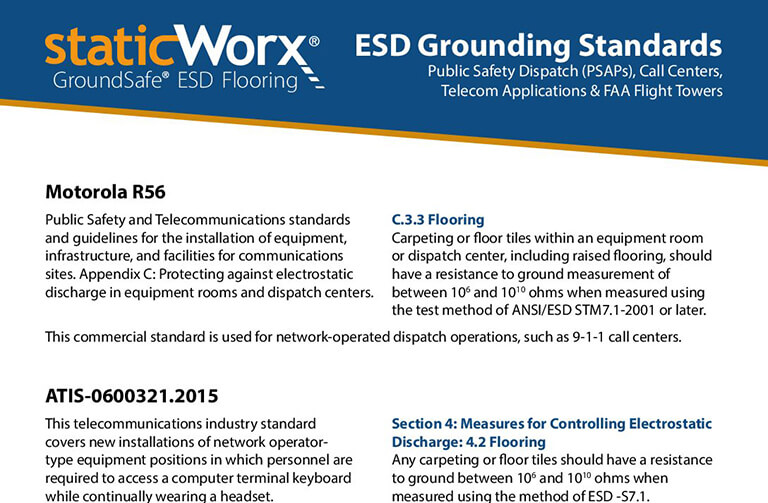

Network Operations & Dispatch (No Footwear)
Motorola R56 Requirements:
- Resistance to Ground: 1.0 × 10E6 to 1.0 × 10E10 ohms
ATIS-0600321 Requirements:
- Resistance to Ground: 1.0 × 10E6 to 1.0 × 10E10 ohms
FAA-STD-019f Requirements:
- Point-to-Point & Surface-to-Ground: > 1.0 × 10E6 and < 1.0 × 10E9 ohms
Applicable Industries: 9-1-1 dispatch centers, telecommunications, control rooms, FAA flight towers, data centers
Key Factors in Selecting Your ESD Floor
Will People Wear ESD Footwear?
This is the single most important question in ESD floor selection. Facilities where ESD footwear is required (electronics manufacturing) follow ANSI/ESD S20.20 and can use conductive flooring. Facilities where regular footwear is worn (dispatch centers, data centers) require static-dissipative flooring to prevent charge generation.
What Are Your Primary Objectives Beyond Static Control?
Aesthetics:
- Best Options: ShadowFX Carpet, AmeriWorx Rox Vinyl
- Consider: Color palette, pattern options, design flexibility
Durability & Wear Resistance:
- Best Options: GroundWorx Epoxy, Eclipse Rubber, AmeriWorx Vinyl
- Consider: Traffic levels, chemical exposure, maintenance requirements
Cleanliness & Hygiene:
- Best Options: GroundWorx Epoxy (seamless), LabCon Welded Vinyl, Eclipse Rubber
- Consider: Cleanroom classification, contamination control needs
Installation Speed/Minimal Downtime:
- Best Options: GroundLock Interlocking, ShadowFX Carpet
- Consider: 24/7 operations, phased installations, curing time requirements
Budget Constraints:
- Economy Options: bioSTAT line, GroundWorx Basics, StatLock Interlocking
- Mid-Range: AmeriWorx Vinyl, ShadowFX Carpet
- Premium: Eclipse Rubber, GroundWorx Ultra, Seamless Welded Systems
Environmental Factors
Chemical Exposure:
- Recommended: GroundWorx Epoxy, Eclipse Rubber, AmeriWorx Vinyl
- Avoid: Carpet in heavy chemical environments
Moisture/Humidity:
- All StaticWorx floors perform in normal humidity ranges
- For high-moisture areas: Epoxy, Rubber, Welded Vinyl
- Moisture barriers available: Kovara moisture protection system
Temperature Extremes:
- Consult StaticWorx technical team for temperature-sensitive applications
- Most products perform well in climate-controlled environments (60-90°F)
Maintenance Requirements
Low-Maintenance Options:
- GroundWorx Epoxy (minimal cleaning required)
- AmeriWorx Vinyl (easy damp-mop cleaning)
Standard Maintenance:
- ShadowFX Carpet (regular vacuuming, periodic deep cleaning)
- Eclipse Rubber (neutral pH cleaning solutions)
Cleaning Products: All StaticWorx floors should be cleaned with StaticWorx-approved ESD-safe cleaning products to maintain conductivity.
Installation Considerations
Existing Floor Conditions:
- Can you install over existing floor? (Interlocking options)
- Does existing floor need removal?
- Substrate preparation requirements
Grounding System:
- Copper grounding strips required for vinyl, rubber, carpet
- Epoxy systems incorporate conductive primer
Downtime Tolerance:
- Immediate walk-on: Interlocking tiles
- 24-48 hours: Carpet, vinyl (adhesive cure time)
- 48-72 hours: Epoxy systems
Ready to Eliminate Static Risk?
When your facility’s protection depends on getting it right the first time, choose
the company with an unmatched track record. We’re standing by to assist you.
Additional Resources to Guide Your Decision
Explore the StaticWorx Knowledge Center for technical articles, videos, and guides to help you specify, install, and maintain ESD flooring with confidence.
