Key Features and Benefits
Reliable Diagnostics
- Works as both a walking body voltage test and static field meter. The wireless band makes it easy to audit an entire facility with one walkthrough – to test a flooring installation or conduct audits in an operational facility.
- Aggregates data from multiple users: An IoT backend aggregates data and stores it in a cloud, affording visibility of the body voltage of multiple operators.
Real-Time Charge Monitoring and Instant Feedback
- Tether-free ESD protection: The band’s built-in charge monitor detects charges while the wearer works, assessing effectiveness of the ESD mitigation system.
- The StatIQ Arm Band continuously monitors static charges on the body and provides instant feedback to ensure that people remain grounded and that electrostatic charges on the body are within acceptable range.
Complies with ESD Standards
- ANSI/ESD S20.20, IEC 61340-5-1, and other industry standards.
Audible Alert
- Automatic Alerts: An integrated alert system notifies users if the band becomes disconnected or detects unsafe charge levels, ensuring uninterrupted compliance.
Ideal Applications
StatIQ Arm Band offers versatile protection across a variety of industries and applications, including:
Part of a Complete ESD System
Combined with StaticWorx ESD flooring, footwear, and seating, StatIQ arm bands provide a total ESD protection package, ensuring that personnel, equipment, and facilities are monitored and fully protected. Bands can also be used throughout the building to ensure ongoing compliance with ESD protocols in the EPA.
For more information, or to request a demo call us today: 617-923-2000.
Description and Specifications
The StatIQ Band measures the wearer’s body voltage with no tethers or wires, giving them complete mobility to move around the workplace.
When a preset voltage is exceeded, the Band emits an audible alarm indicating that it is unsafe to handle sensitive electronics or travel in explosive environments.
If a discharge to sensitive equipment does occur, the StatIQ Band identifies the ESD event and logs it in the back end for analysis.
- Voltage accuracy: 10V
- Minimum ESD event (ΔV): 100V
- Battery Life: 16 hours
- Bluetooth Range: 30m
- Weight: 92g
- Size: 88x62x25mm

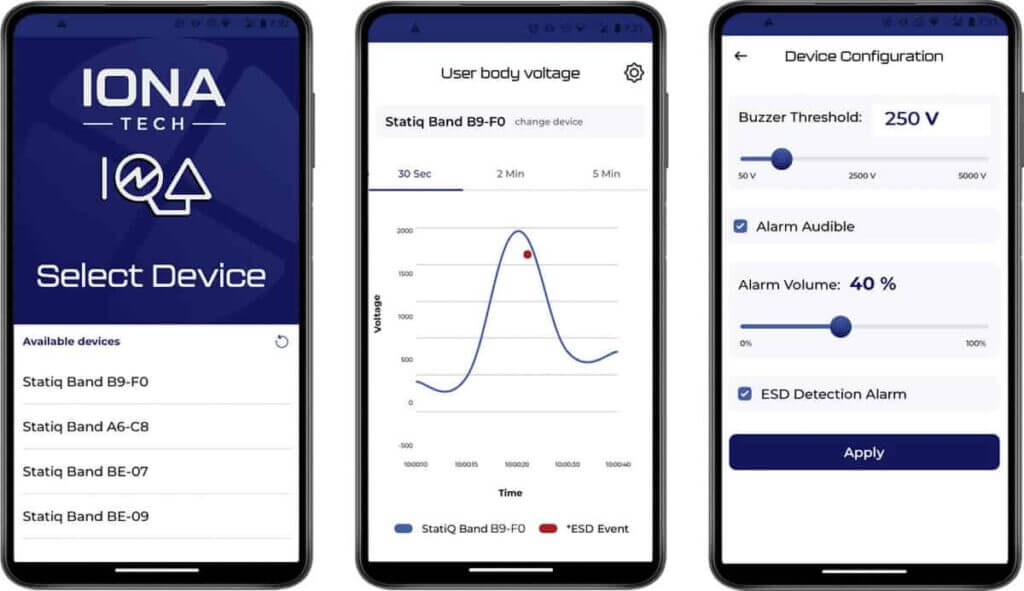

Mobile App

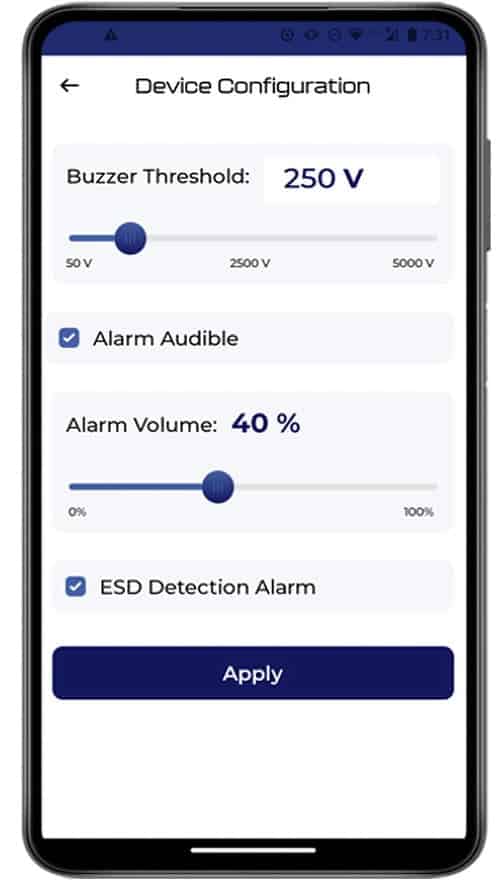

The integrated mobile app allows the user to visualize voltage data and change parameters, such as alarm threshold and volume.
- Collect real-time voltage measurements from the StatIQ Band over Bluetooth.

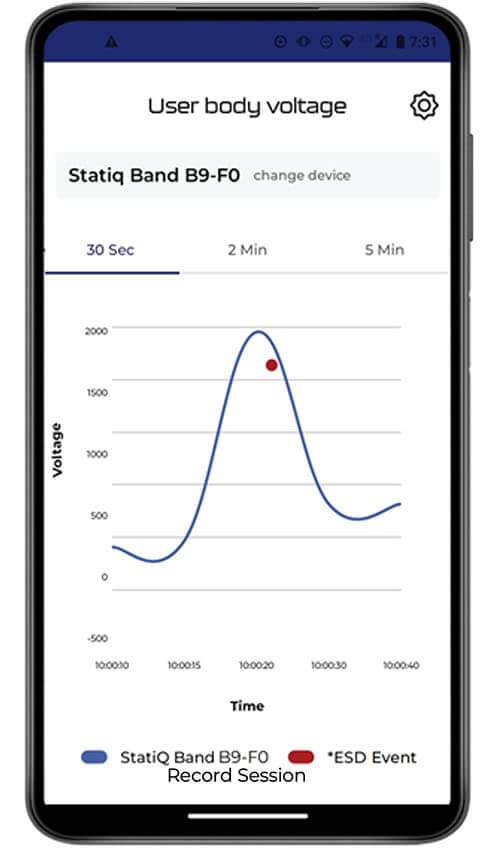

- Assess voltage history with various time scales
- Enable alarms
- Change voltage alarm thresholds and volumes
- Download time history of voltage and ESD data in CSV format for analysis
StatIQ Dashboard
- Collect real-time voltage measurements from all StatIQ Bands over Bluetooth and aggregate data for analysis in the cloud
- Log temperature and humidity data
- Record alarms when voltage exceeds programmable thresholds
- Log in from any browser to analyze StatIQ System data
- Set up email or SMS notifications with customizable alarm conditions
Case Study
A large chip manufacturer purchased StatIQ bands for ongoing monitoring of ESD compliance across their facility. With data from the bands they were able to locate sources of charge generation in their ESD Protected Areas (EPA). By removing the charge generators, they progressively reduced the alarm thresholds from 500V to 250V to 100V.
The ESD manager had this to say:
“This system has paid for itself many times over, we’ve had at least 5 institutional learnings about our ESD controls.”
“You’ve changed the paradigm of ESD control.”
What Clients are Saying
…the floor is awesome! It’s very durable and it’s very convenient that we can lift tiles up to remove debris from underneath, and even replace tiles if they are damaged. So from a functional perspective, this is the best floor for our manufacturing operation.
You would never know it was ESD, WHICH IS AMAZING! Your product rocks and I’m so glad we were able to find an attractive solution that didn’t leave us with some run-of-the-mill ugly disaster in the middle of our workspaces!
Your product is impervious to most/all conditions. It’s impressive. Happy to be working with StaticWorx.
Explore Our Testing Equipment
StatIQ Arm BandFrequently Asked Questions
What is the StatIQ Arm Band?
The StatIQ Arm Band is a wearable body voltage monitor that continuously measures electrostatic charges on personnel in real time, ensuring ESD safety in environments like labs, cleanrooms, data centers, and electronics manufacturing facilities.
How does it work?
The band detects static charges on the wearer’s body and provides instant audible alerts if a preset voltage threshold is exceeded. Data is collected via Bluetooth and visualized in a mobile app or cloud dashboard.
What standards does it comply with?
The StatIQ Arm Band meets ANSI/ESD S20.20, IEC 61340-5-1, and other industry standards for ESD control and monitoring.
What are the key specifications?
- Minimum detectable ESD event: 100 V
- Voltage accuracy: ±10 V
- Battery life: 16 hours
- Bluetooth range: 30 m
- Weight: 92 g; Size: 88 × 62 × 25 mm
What applications is it ideal for?
- Electronics manufacturing and SMT facilities
- High-tech labs and cleanrooms
- Data centers and server/IDF rooms
It is designed to complement StaticWorx ESD flooring, footwear, and seating for a complete ESD system.
Can the StatIQ Band track multiple users?
Yes, the IoT-enabled system aggregates data from multiple bands, logs events, and allows real-time monitoring and historical analysis of body voltage levels across an entire facility.
